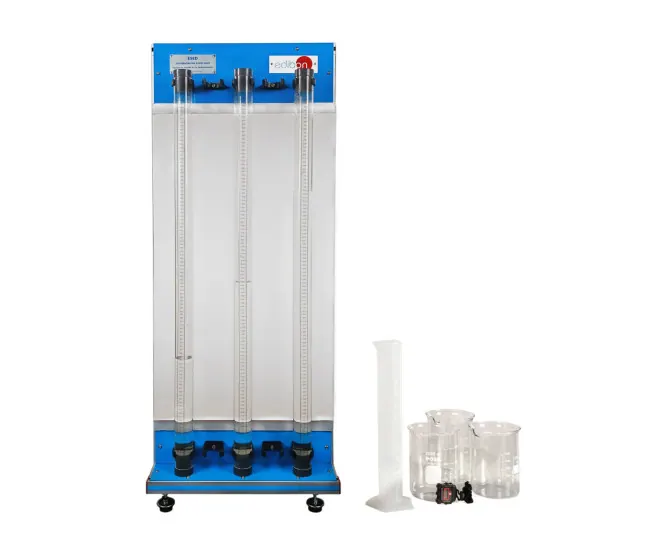

ESED: Sedimentation Study Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
ESED is a column apparatus for batch settling tests. Samples are drawn from ports at different depths over time, so the settling velocity distribution of a suspension and the interface subsidence curve can be plotted.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 550 x 400 x 1300 mm approx |
| Weight | 35 Kg approx |
| Dimensions | 1 m x 50 mm approx |
| Specification | Two fluorescent lamps (60 W) |
| Specification | Three beakers of 2 l capacity |
| Specification | Graduated cylinder of 1 l capacity |
