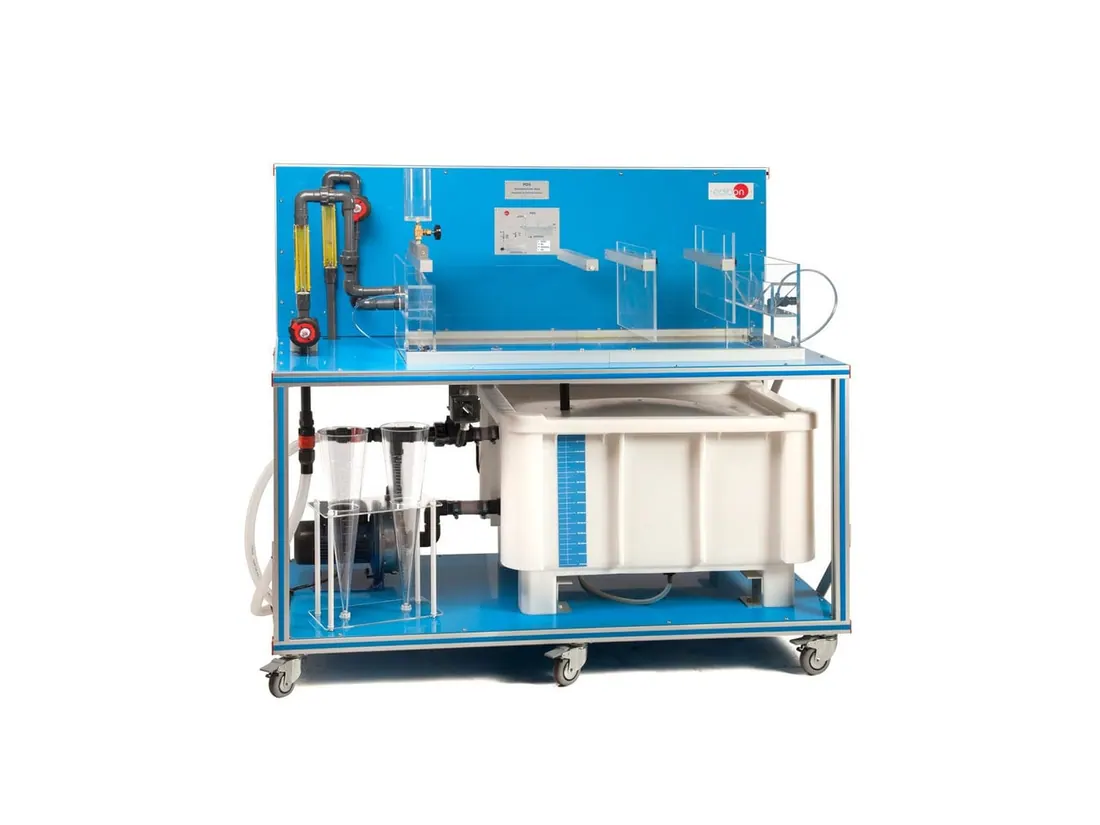

PDS: Sedimentation Tank
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PDS is a settling tank for studying the removal of suspended solids. Flow rate and inlet concentration are varied while samples are taken along the tank, so settling velocity and removal efficiency can be determined. A computer controlled version, PDSC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1300 x 1400 x 700 mm approx |
| Weight | 150 Kg approx |
| Sedimentation tank, made of transparent material; length | 1000 mm, width: 400 mm |
| Height | 250 mm |
| Specification | Suspension tank of 140 l |
| Centrifugal pump, flow up to 80 l/min. Maximum height | 20 m |
