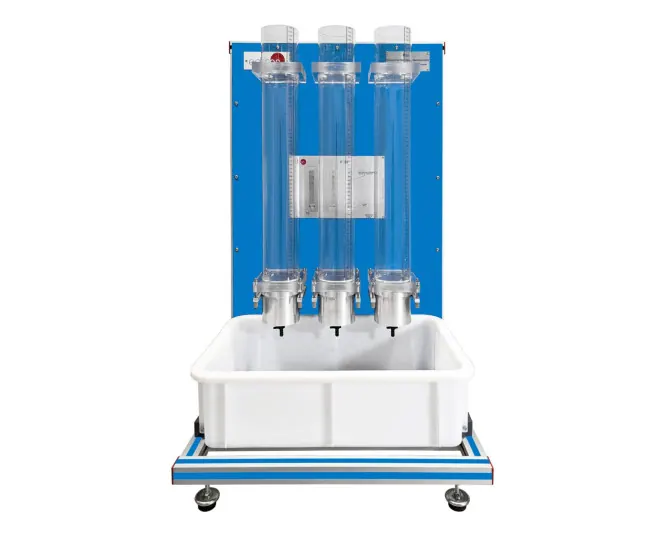

PEDI: Demonstration Infiltration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PEDI is used to measure the rate at which water infiltrates into soil. Water is ponded on a soil column and the fall in level is recorded over time, so the infiltration curve and the final steady rate can be obtained.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 500 x 400 x 900 mm approx |
| Weight | 30 kg approx |
| External diameter | 100 mm |
| Height | 600 mm |
| Capacity | 25 l |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
