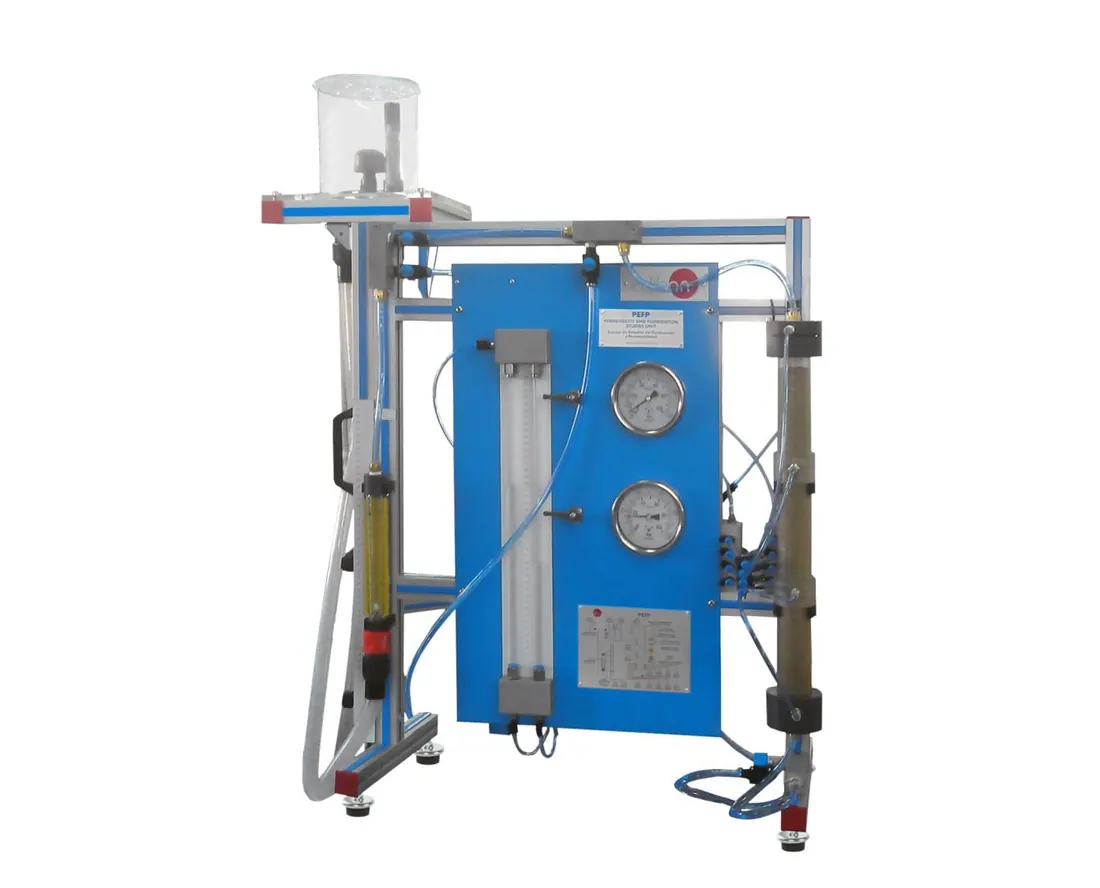

PEFP: Permeability/Fluidisation Studies Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PEFP is used to study flow through packed and fluidised beds. Water or air passes upward through a granular bed while pressure drop and flow are measured, giving the permeability and the minimum fluidisation velocity. A computer controlled version, PEFPC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 800 x 400 x 1100 mm approx |
| Weight | 30 kg approx |
| Permeameter | transparent acrylic cylinder of 50 mm diameter, 500 mm length |
| Specification | Tubes manometer of 500 mm length |
| Constant head supply device | max. height variation: 500 mm |
| Flowmeter, range | 0,2 to 2 l/min |
