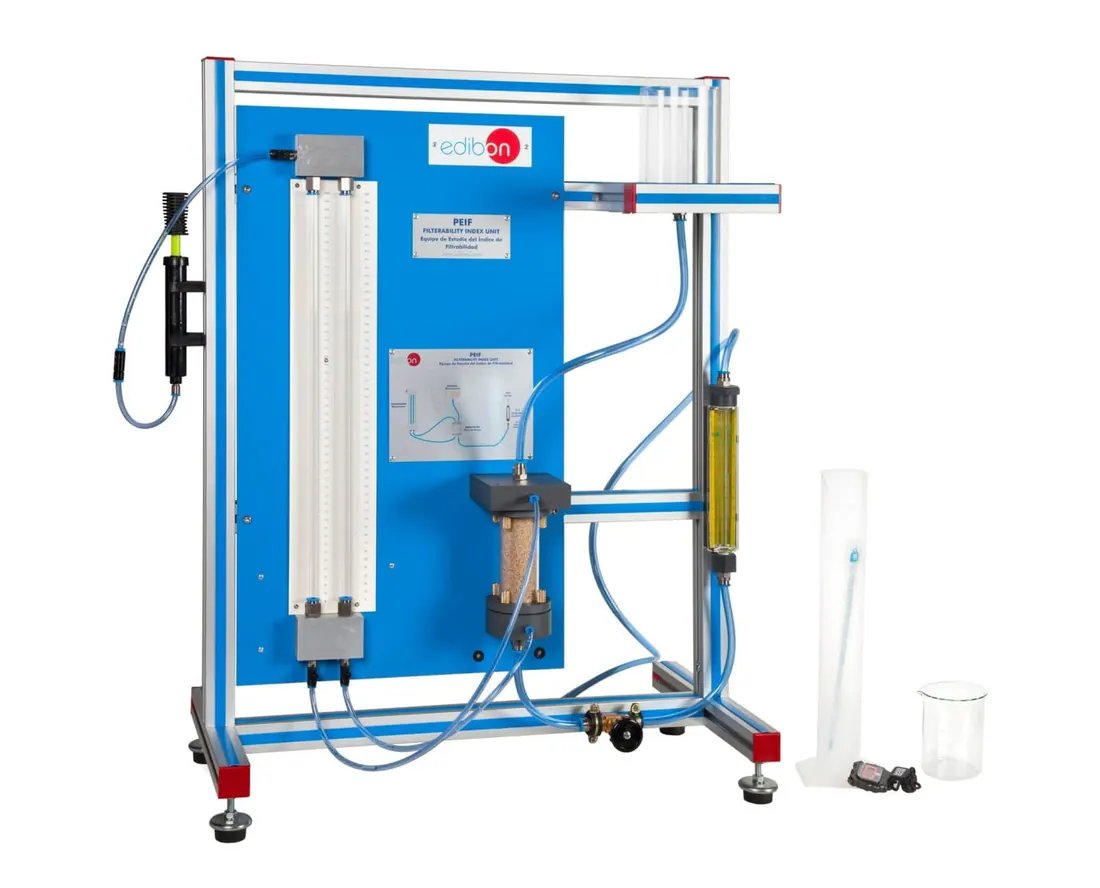

PEIF: Filterability Index Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PEIF is used to determine the filterability index of a suspension. The sample is filtered under controlled pressure while the volume of filtrate is recorded against time, giving the specific resistance of the cake. A computer controlled version, PEIFC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 400 x 800 mm approx |
| Weight | 25 kg approx |
| Specification | Feeding tank of 1 l capacity |
| Height of the filter | 70 mm |
| Test filter cell diameter | 44 mm |
| Water flow meter, range | 0.07 to 0.55 l/min |
