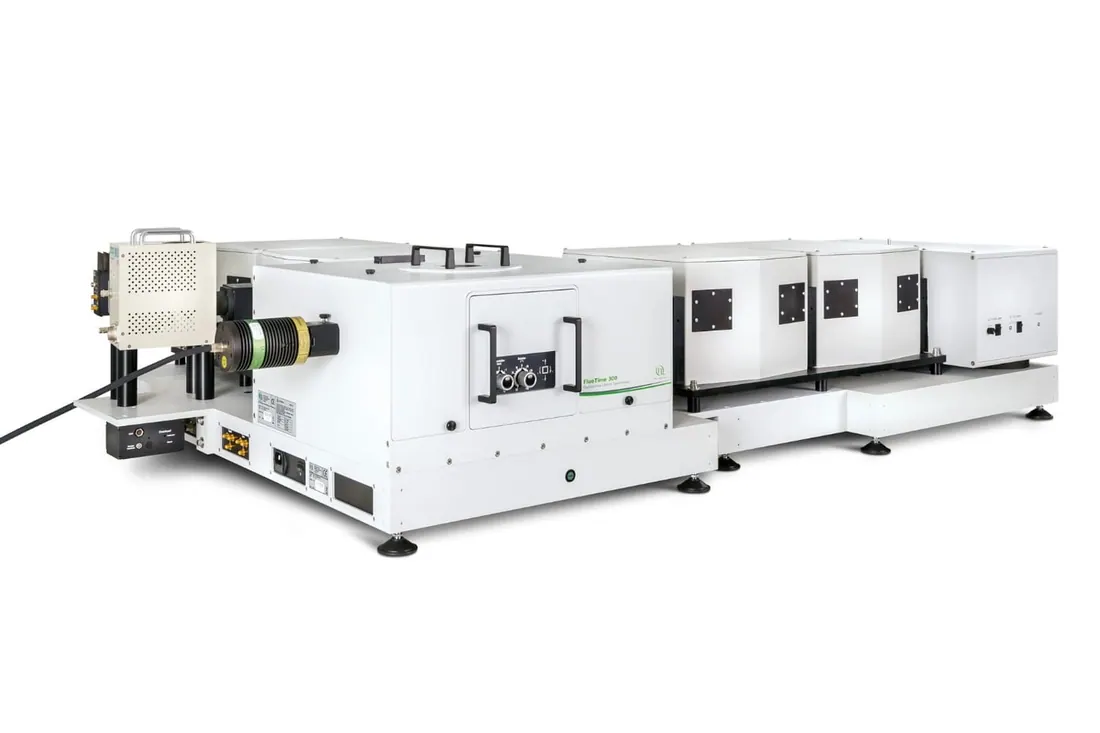

FluoTime 300
Brand: PicoQuant | Category: Nanotechnology
The FluoTime 300 is a modular photoluminescence spectrometer that combines steady-state and time-resolved measurements in one instrument. It records emission and excitation spectra as well as fluorescence and phosphorescence decays. It is used for materials characterisation, semiconductor and LED research.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Monochromator options | Single or double Czerny–Turner |
| Focal length | 300 mm single; 2 × 300 mm double |
| Single monochromator resolution | 0.30 nm |
| Double monochromator resolution | 0.30 nm subtractive; 0.15 nm additive |
| Minimum step size | 0.01 nm, grating-dependent |
| Slit width | 0–10 mm, continuously adjustable and motorized |
| Single monochromator dispersion | 2.70 nm/mm |
PicoQuant FluoTime 300 datasheet, November 2025, page 2. These alternatives must be matched to the quoted configuration. Spectral range, response and dimensions vary with the selected excitation sources, monochromators and detectors. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
