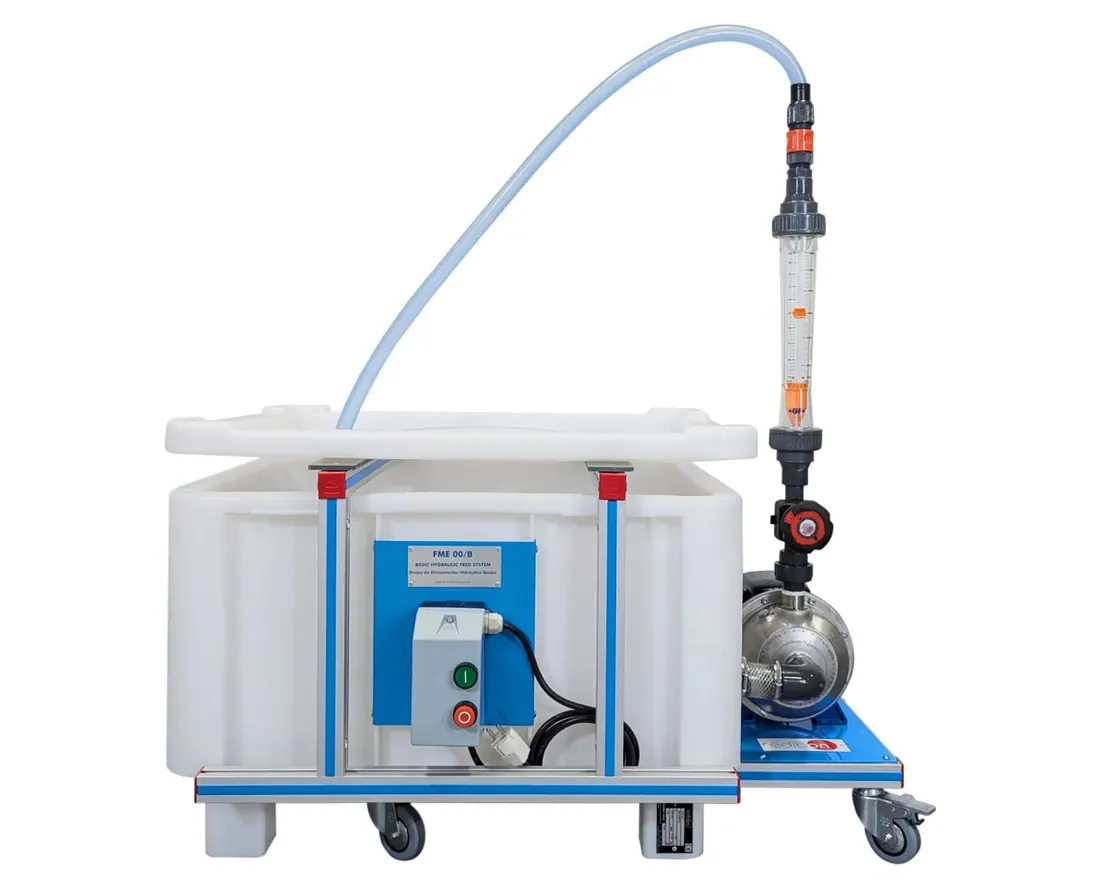

FME00/B: Basic Hydraulic Feed System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME00/B is a compact water feed system for FME modules. A centrifugal pump draws from a polyethylene tank and a flowmeter at the pump outlet sets the flow to the unit under test. It is an alternative to the full hydraulics bench where space is limited.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 600 x 700 mm approx |
| Weight | 40 kg approx |
| Centrifugal pump | 0.37 KW, 30 to 80 l/min at 20.1 to 12.8 m, single-phase 200 VAC, 240 VAC/50 Hz or 110 VAC, 127 VAC/60 Hz |
| Tank capacity | 140 l approx |
| Flowmeter, range | 600 to 6000 l/h |
