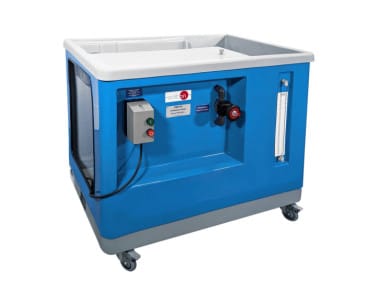

FME00: Hydraulics Bench
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME00 is a mobile hydraulics bench that supplies and measures water for the FME range of fluid mechanics modules. It carries its own sump tank and centrifugal pump, and a stepped volumetric tank for measuring low and high flow rates. Modules mount on the top channel without tools.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1130 x 730 x 1000 mm approx |
| Weight | 70 kg approx |
| Specification | Centrifugal pump, 0.37 KW, 30 to 80 l/min at 20.1 to 12.8 m, single-phase 200 VAC, 240 VAC/50 Hz or 110 VAC, 127 VAC/60 Hz |
| Sump tank capacity | 165 l |
| Small channel | 8 l |
| Flow measurement | volumetric tank, gauged from 0 to 7 l for low flow values and from 0 to 40 l for high flow values |
