FME05: Energy Losses in Bends
Brand: EDIBON | Category: Scientific & Laboratory Equipment

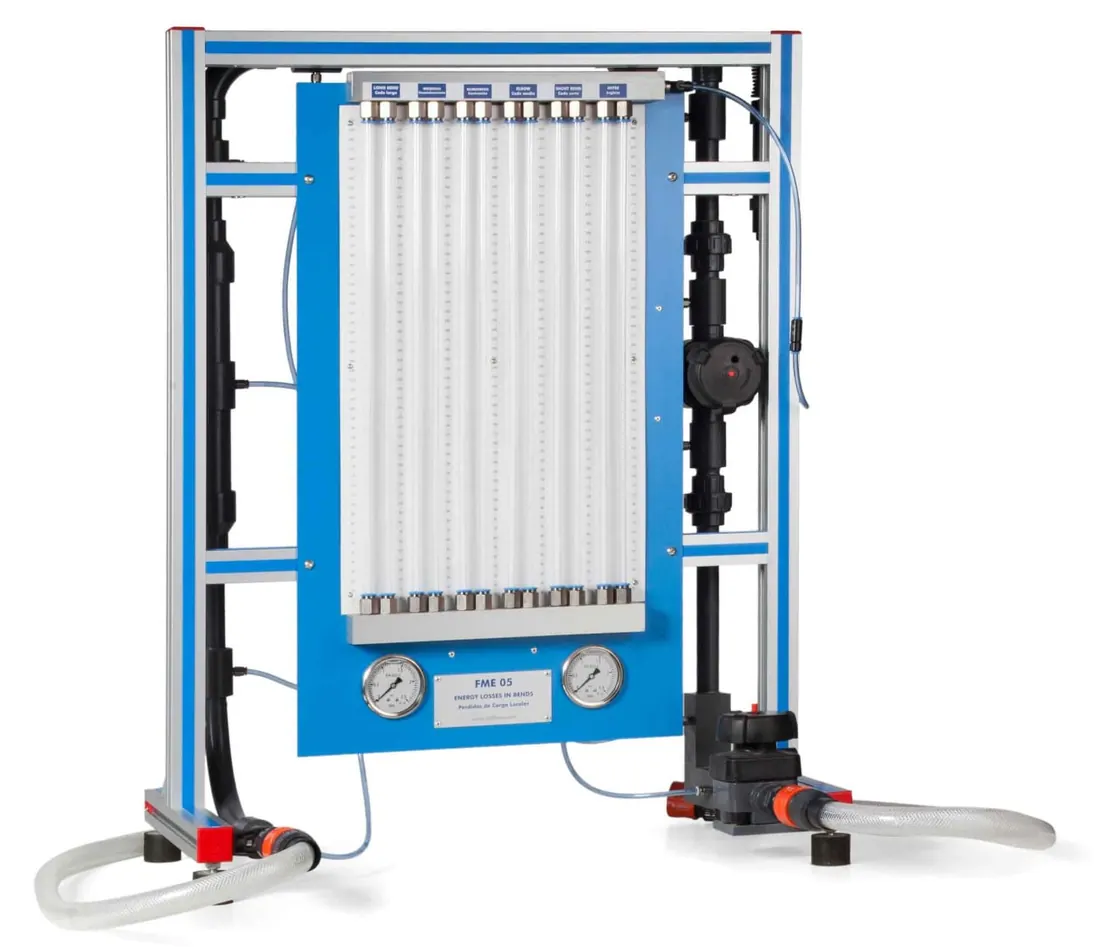

FME05 is used to measure minor losses in pipe fittings. Bends, elbows, enlargements, contractions and a valve are connected in a circuit with pressure tappings, so the loss coefficient of each fitting can be found.
Technical Specifications
| Parameter | Value |
|---|---|
| Bourdon pressure gauge range | 0–2.5 bar |
| Differential manometer range | 0–500 mm |
| Manometric tubes | 12 |
| Rigid PVC pipe inner / outer diameter | 25 / 32 mm |
| Unit dimensions | 750 x 550 x 950 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 27 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
