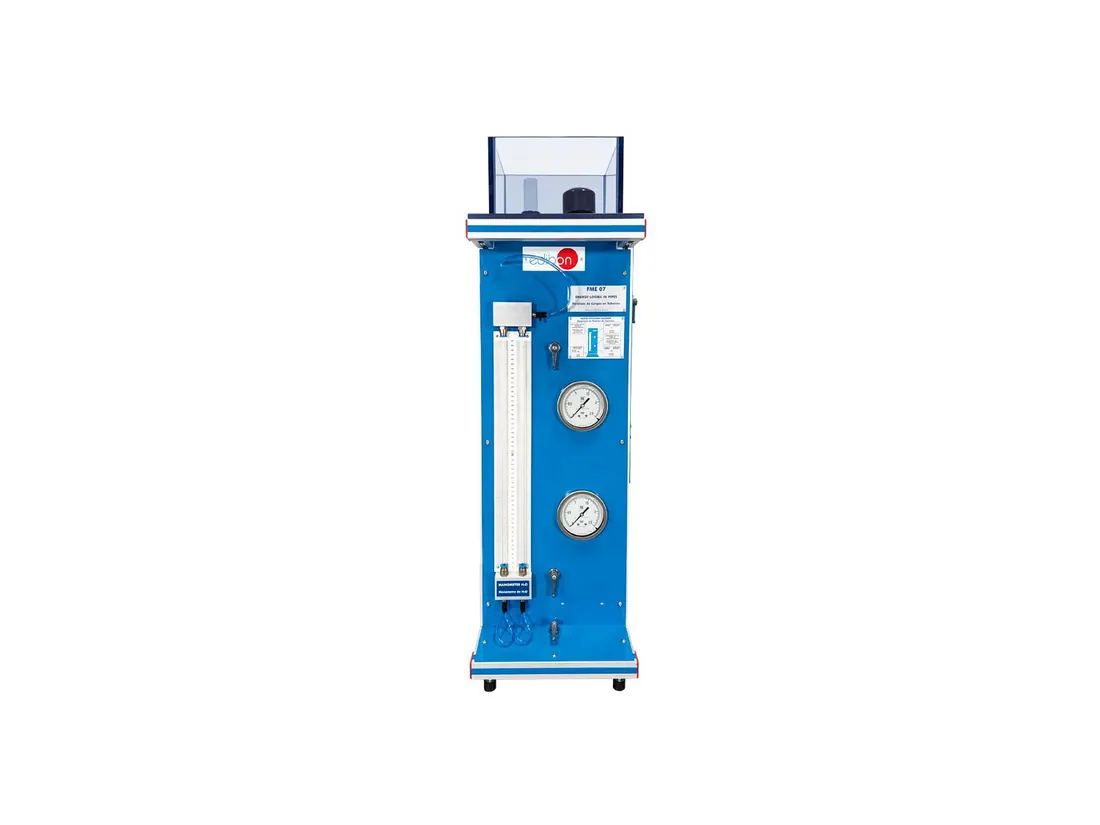

FME07: Energy Losses in Pipes
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME07 is used to measure friction losses along a straight pipe. Head loss is read between tappings over a known length at different flow rates, giving the friction factor and allowing the laminar and turbulent regimes to be compared.
Technical Specifications
| Parameter | Value |
|---|---|
| Test pipe inner / outer diameter | 4 / 6 mm |
| Test pipe length | 500 mm |
| Water manometer scale | 0–500 mm of water |
| Bourdon gauge range | 0–2 bar |
| Unit dimensions | 330 x 330 x 900 mm approx. |
| Unit weight | 30 kg approx. |
Selected data from the model-specific panel on page 27 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
