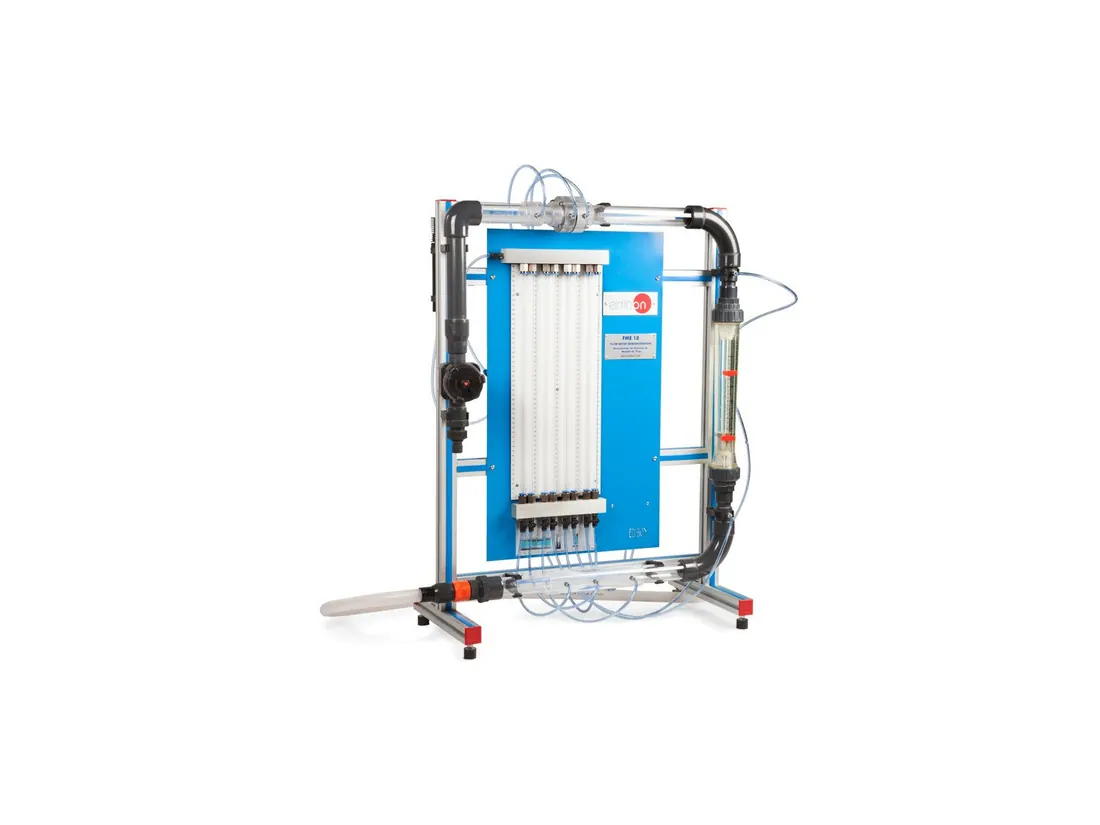

FME18: Flow Meter Demonstration
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME18 compares the common differential pressure flow meters. A venturi, an orifice plate and a rotameter are connected in series and the pressure drop across each is read on a multitube manometer, giving discharge coefficients and head loss.
Technical Specifications
| Parameter | Value |
|---|---|
| Manometer range | 0–500 mm of water column |
| Manometric tubes | 8 |
| Flowmeter range | 2–30 l/min |
| Venturi throat diameter | 20 mm |
| Unit dimensions | 750 x 450 x 950 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 7 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
