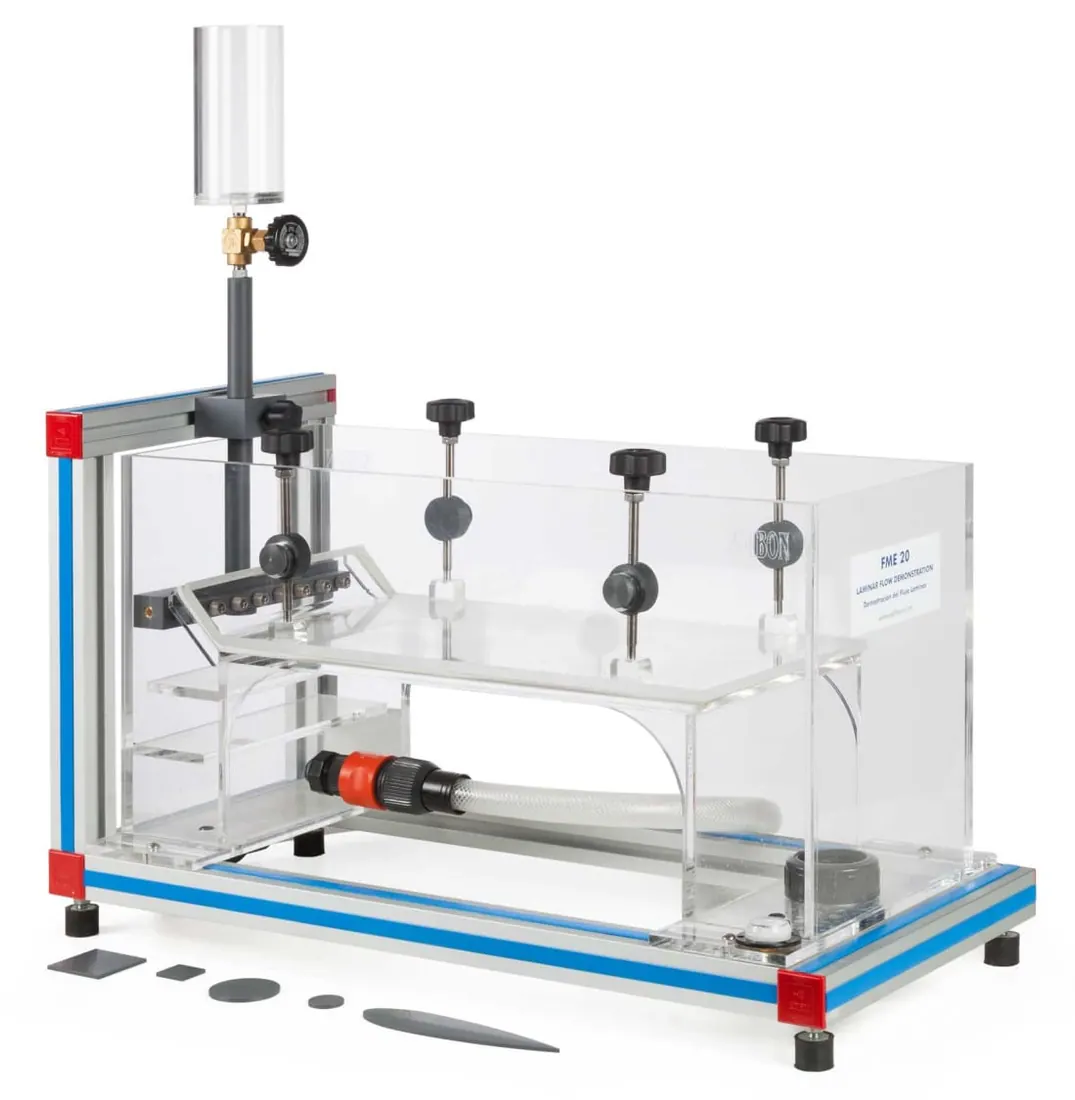

FME20: Laminar Flow Demonstration
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME20 is a Hele Shaw type unit for showing streamline flow. Water passes between two closely spaced plates and dye filaments trace the streamlines around inserted shapes, giving a two dimensional picture of potential flow.
Technical Specifications
| Parameter | Value |
|---|---|
| Dye tank capacity | 0.3 l |
| Table width / length | 400 / 210 mm |
| Table depth | Adjustable to suit the demonstration models |
| Unit dimensions | 870 x 450 x 400 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 19 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
