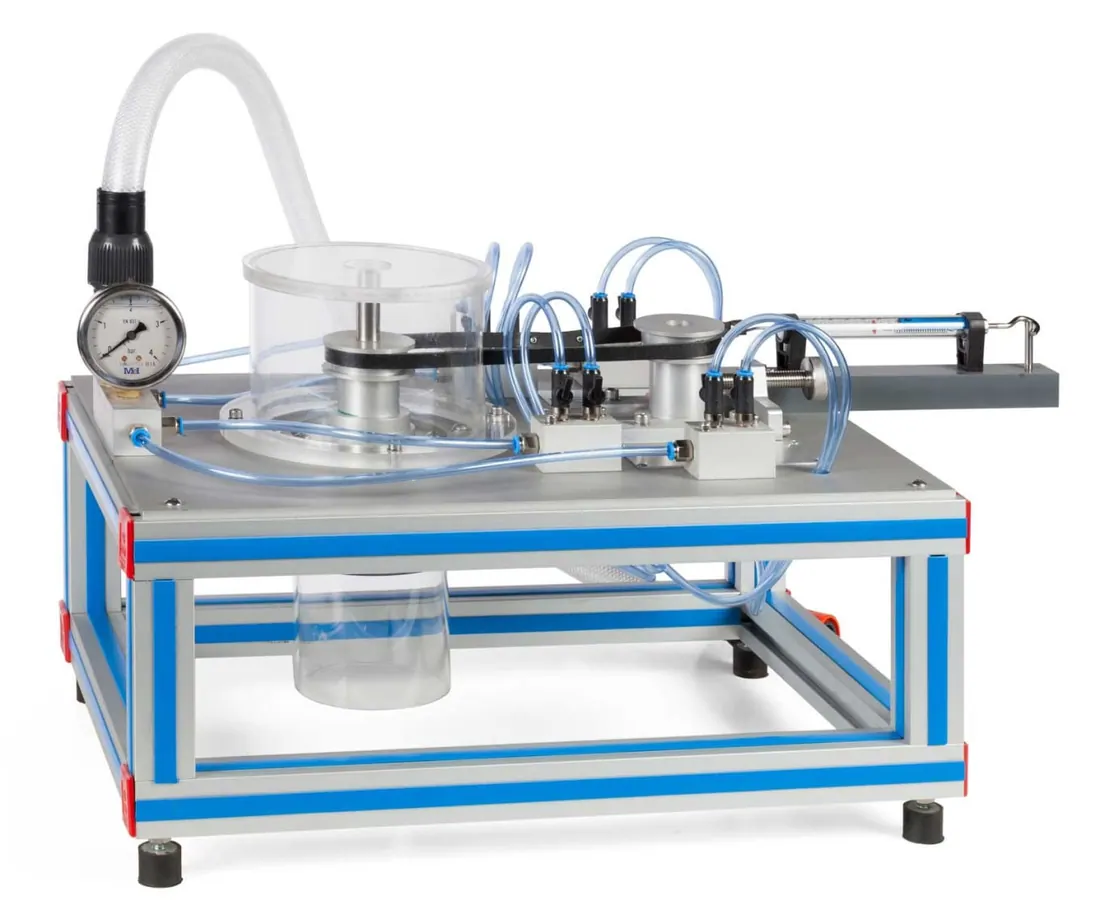

FME27: Axial Flow Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME27 is a bench module for testing an axial flow reaction turbine. Head, flow, speed and brake torque are measured so power and efficiency curves can be plotted and compared with those of radial flow machines.
Technical Specifications
| Parameter | Value |
|---|---|
| Rotor external / internal diameter | 53 / 45 mm |
| Rotor blades | 40 |
| Blade inlet / outlet angle | 40° / 40° |
| Nozzle discharge angles | 20° and 30° |
| Unit dimensions | 550 x 300 x 600 mm approx. |
| Unit weight | 20 kg approx. |
Selected data from the model-specific panel on page 25 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Hydraulic machines experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
