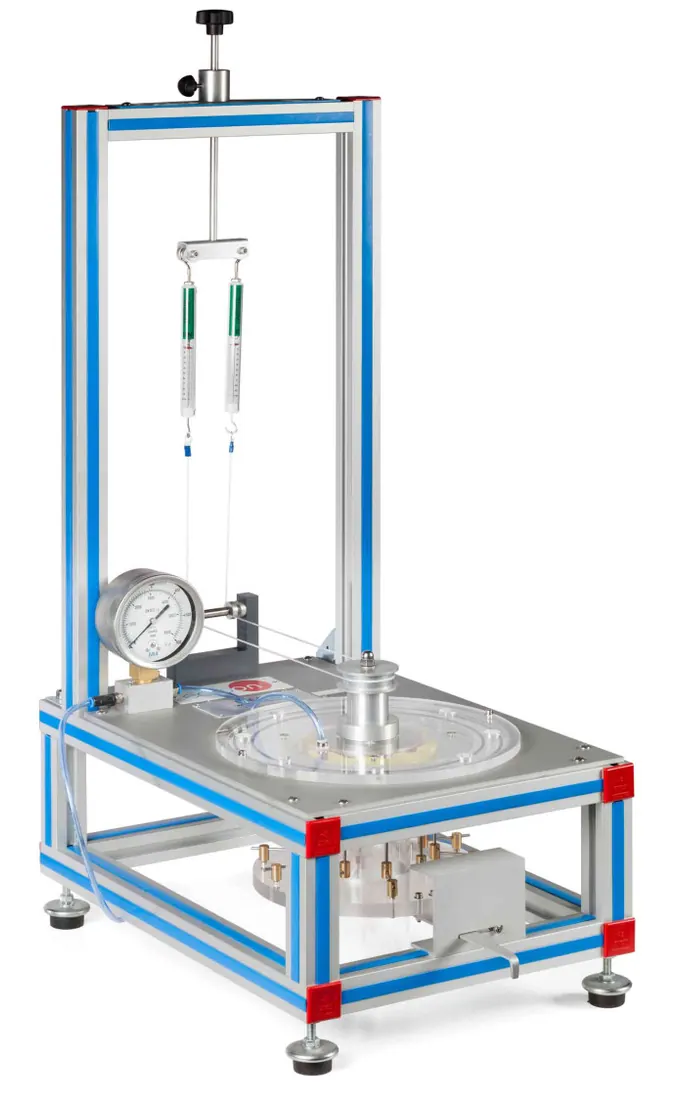

FME28: Francis Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME28 is a bench module for testing a Francis mixed flow turbine. Guide vane opening, head, flow, speed and torque are measured so the characteristic and efficiency curves of the machine can be plotted.
Technical Specifications
| Parameter | Value |
|---|---|
| Speed range | 0–1000 rpm |
| Power | 5 W |
| Turbine diameter | 52 mm |
| Rotor blades / guide vanes | 15 / 10 |
| Pressure manometer range | 0–250 mbar |
| Unit dimensions | 500 x 350 x 600 mm approx. |
| Unit weight | 20 kg approx. |
Selected data from the model-specific panel on page 25 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
