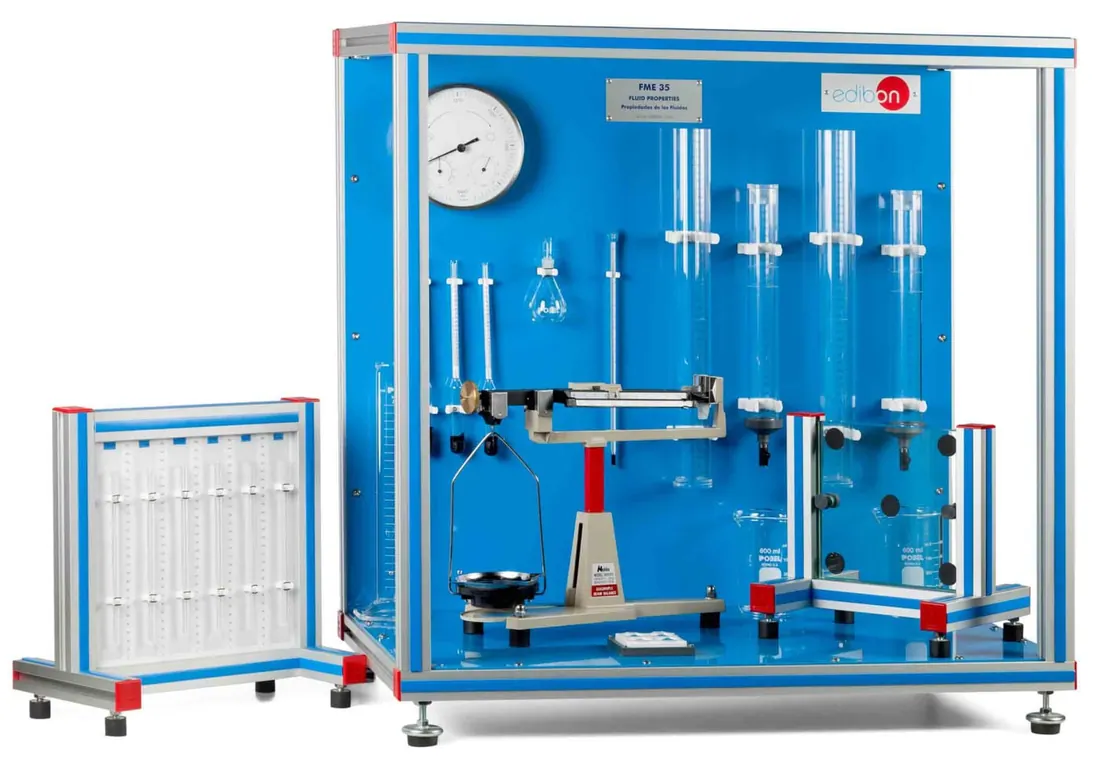

FME35: Fluid Properties
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME35 is a module for measuring the basic properties of liquids. It covers density and specific gravity with hydrometers, viscosity by the falling ball method, capillary rise and surface tension, giving data needed for later experiments.
Technical Specifications
| Parameter | Value |
|---|---|
| Hydrometer resolution | 0.002 °SG |
| Hydrometer ranges | 0.8–1.0, 1.0–1.2 and 1.2–1.4 °SG |
| Aneroid barometer range | 973–1047 mbar |
| Thermometer range | −10 to 50 °C |
| Unit dimensions | 850 x 500 x 800 mm approx. |
| Unit weight | 20 kg approx. |
Selected data from the model-specific panel on page 13 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
