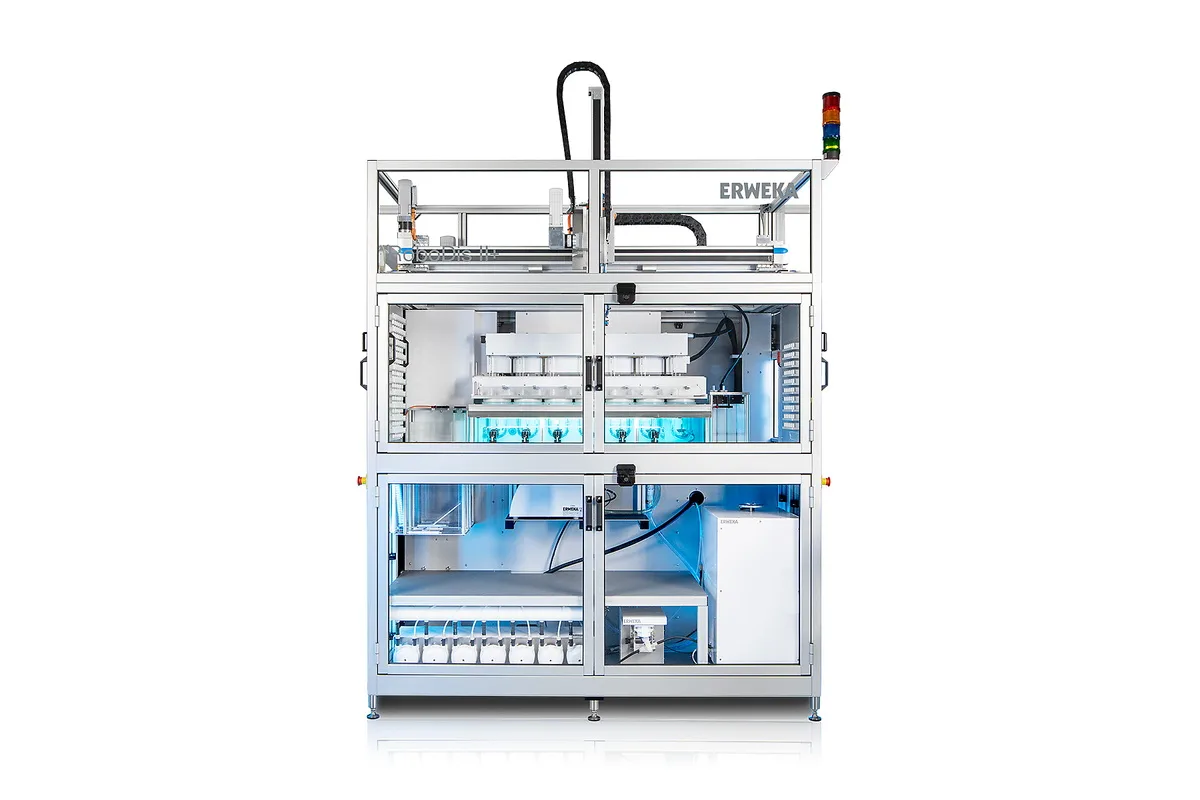

Fully Automated Dissolution System RoboDis II+
Brand: Erweka | Category: Scientific & Laboratory Equipment
Erweka state that the RoboDis II+ is the only simultaneously operating, fully automatic dissolution test system currently on the market, with every stage of the dissolution process computer controlled and carried out without user intervention. Disso.NET is the key element, controlling all system functions including precise movement of the robot arm, control of the analysers, data processing and full documentation. In standard configuration it tests up to 10 batches to USP method 1 (basket) or 2 (paddle), and the parallel sampling approach gives very short cycle times for detailed drug release profiles. Integrated System Suitability Tests and video monitoring support reliability, and a 10 batch system needs no more than 2 x 1 m of floor space.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Standard configuration | Up to 10 batches |
| Higher-capacity configuration | 40 batches; selected separately |
| Listed standard methods | USP 1 (basket) or USP 2 (paddle) |
| 10-batch system footprint | No more than 2 × 1 m |
| Control software | Disso.NET |
Selected current RoboDis II+ configuration data. The stated footprint applies to the 10-batch arrangement; confirm the installed generation, batch option, analytical connections, media preparation and cleaning configuration. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
