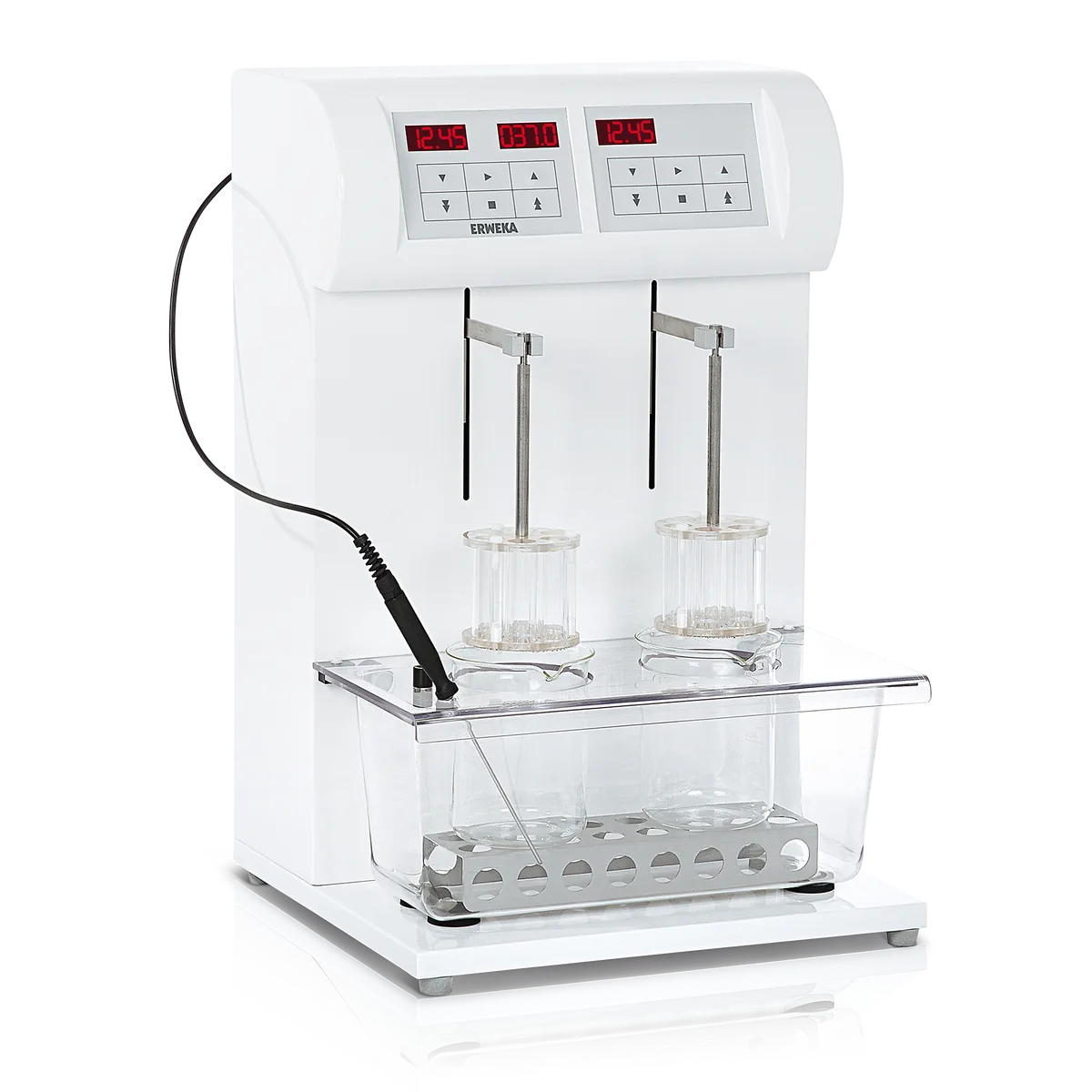

Disintegration Tester ZT 320 Series (ZT 321, ZT 322, ZT 323, ZT 324)
Brand: Erweka | Category: Scientific & Laboratory Equipment
On the ZT 320 series the one to four test stations are driven individually, and each station has its own keypad. Once the required run time is programmed, the basket rack assembly with its loaded samples lowers automatically into the media, and on completion of the preset time or when the stop button is pressed the rack is raised out of the media to prevent further disintegration, which is optional. Temperature shown on the LED display is measured by the standard external sensor sitting either in the water bath or in the test media. Recorded test run parameters can be hard copied through the USB printer interface and the actual disintegration time added manually afterwards.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 23 (ZT 321) / 33 (ZT 322) / 47.5 (ZT 323) / 51.5 (ZT 324) kg |
| Dimensions (H x W x D) | 660 x 430 (ZT 321-322) / 750 (ZT 323-324) x 400 mm |
| Voltage | 110/220/240 V; 50-60 Hz |
| Fuses | 15 A / 3.15 A |
| Interfaces | RS-232 |
| Test stations | 1 / 2 / 3 / 4 (ZT 321-324) |
| Control | LED display with foil keypad |
| Stroke height | 55 ± 2 mm |
| Stroke Speed | 30 ± 1 strokes/min |
| Heating | Integrated flow-through heating system (accuracy ± 0.2 °C) |
| Temperature range | 30 °C - 50 °C (± 0.2 °C) |
| Run time | Up to 99 h, 59 min, 59 s ± 1 s |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
