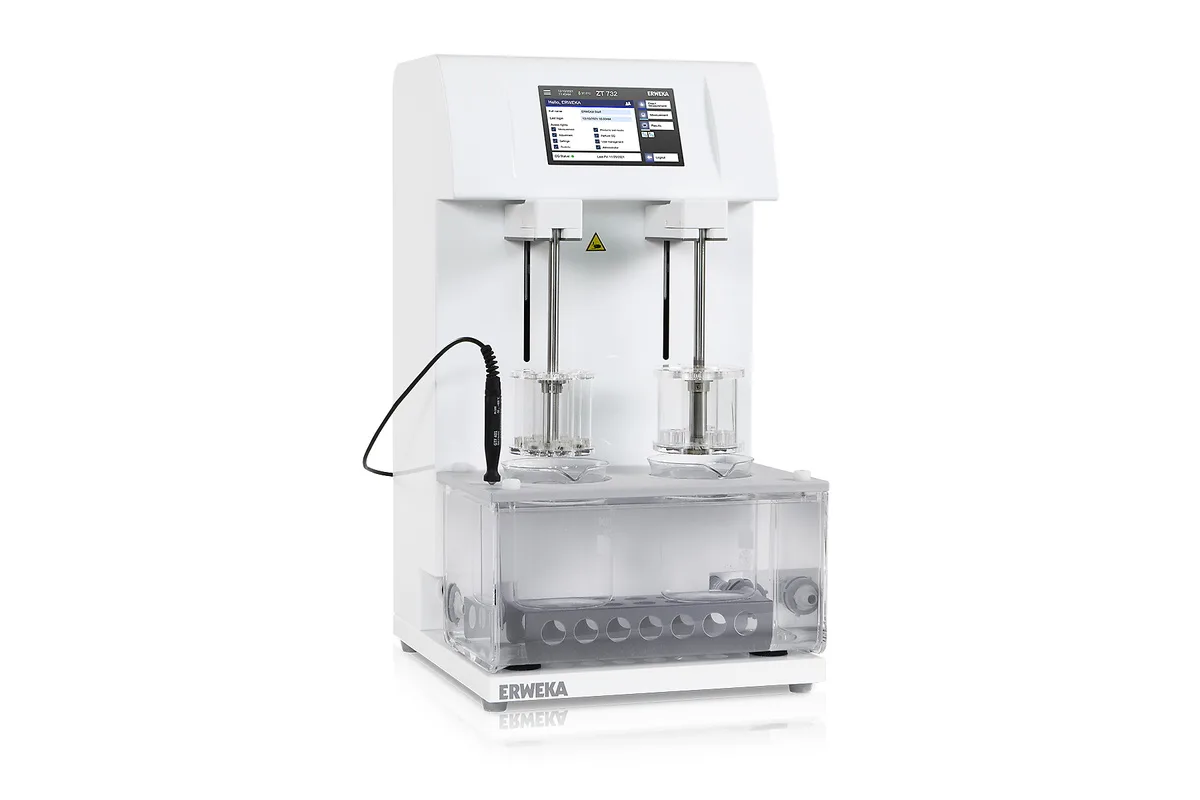

Disintegration Tester ZT 730 Series (ZT 731, ZT 732)
Brand: Erweka | Category: Scientific & Laboratory Equipment
The ZT 730 series determines disintegration time automatically using a cable free AirBasket built around a system of magnets and sensors. It comes with one individually driven test station (ZT 731) or two (ZT 732) and carries an integrated flow through heater. The AirBasket has a sealed electronics compartment, making it dishwasher proof, and durable sensors that allow use in acidic media; it is available as a type A basket with 6 test tubes for standard tablets or a type B basket with 3 test tubes for larger tablets, both to USP / EP / JP standards. Water bath technology uses the thermal inertia of water for a steady test temperature with a PT 100 sensor for constant control, and the 7 inch touchscreen stores and retrieves up to 200 products or methods with their results and parameters.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30 - 35 kg |
| Dimensions (H x W x D) | 667 x 397 x 365 mm |
| Voltage | 230 V/115 V / 1750 Watt; 50-60 Hz |
| Interfaces | USB A, USB B and LAN |
| Test stations | 1 (ZT 731) or 2 (ZT 732) |
| Control | 7" Touch display |
| Stroke height | 55 ± 2 mm |
| Stroke Speed | 30 ± 1 strokes/min |
| Heating | Integrated flow-through heating system (accuracy ± 0.2 °C) |
| Temperature control | External PT 100 temperature sensor |
| Memory | 4 GB memory for 200 products/methods and approx. 10 000 test results |
| Lift drive | Step motor |
| Automatic determination of the disintegration time | AirBasket type A (6 test tubes) or AirBasket type B (3 test tubes plus discs) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
