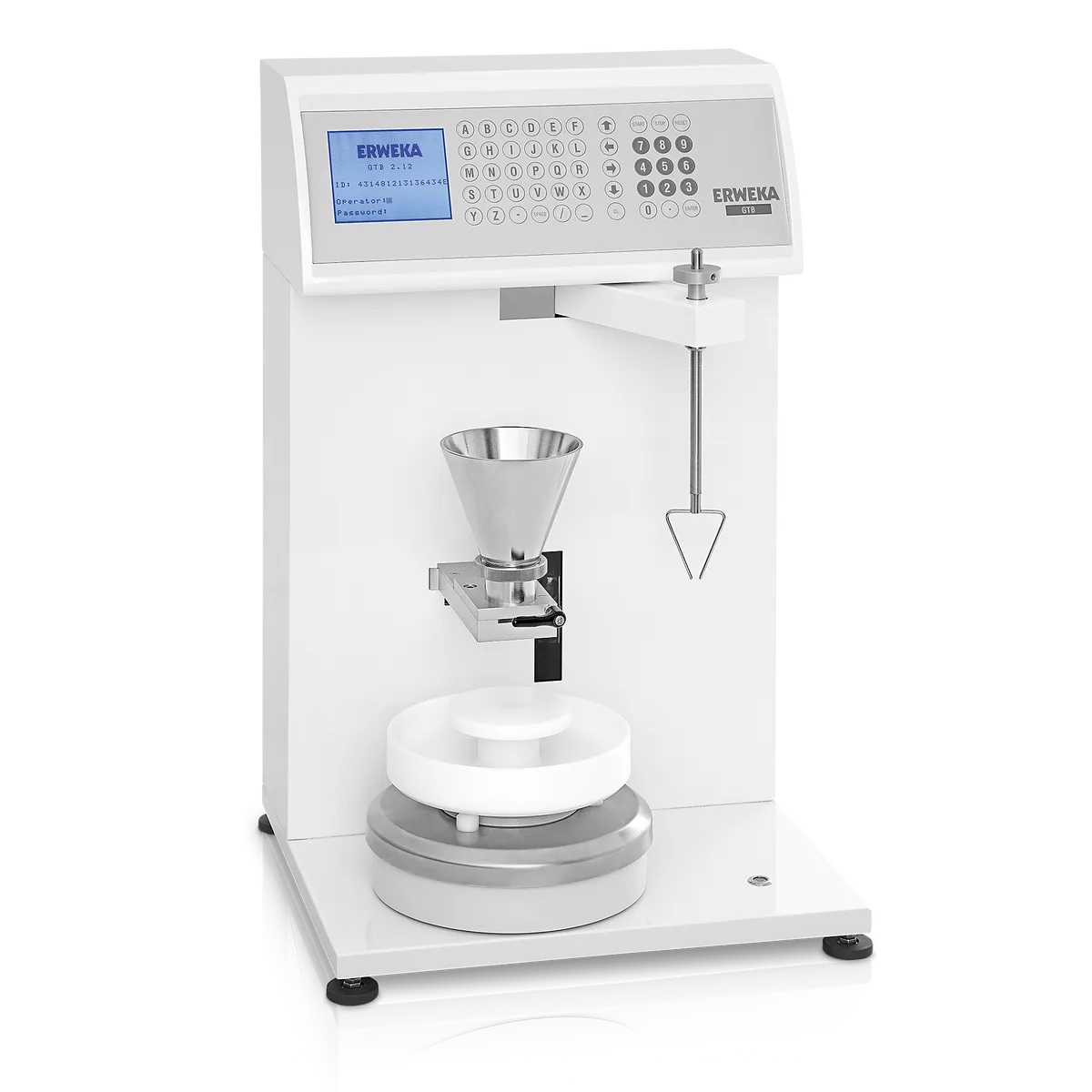

Granulate Flow Tester GT Series (GTL, GT, GTB)
Brand: Erweka | Category: Scientific & Laboratory Equipment
Erweka's granulate flow tester family determines the flow behaviour of powders and granules by several measurement methods. The GTL is the entry level device for USP / EP compliant measurement of flowability by weight and by volume, operated through a simple numeric keypad and LC display with printable results. The GT adds a scale so stable weight can be measured during the flow, and on top of the GTL's two methods it measures flowability over a set time and the flow angle with graphical display. The GTB extends the GT with advanced automatic laser measurement of the angle of repose. Accessories such as outlet nozzles of differing diameters, smaller collecting funnels and an optional four stage agitator for poorly flowing samples allow customer specific measurements that are not EP compliant.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 25 kg |
| Dimensions (H x W x D) | 700 x 430 x 400 mm (GT & GTB) 730 x 430 x 400 mm (GTL) |
| Voltage | 100 - 240 V / 50 - 60 Hz |
| Interfaces | RS232C and USB |
| Control | Alphanumeric membrane keypad with LC display (GT/GTB) Membrane keypad with LC display (GTL) |
| Outlet nozzle | 10 / 15 / 25 mm (Optional: 6 / 8 / 11.3 mm) |
| Funnel | 480 ml (Optional: 100 / 200 ml) |
| Precision scale | Mettler Toledo RPA 455 (GT/GTB only) |
| Maximum load | 7000 g (GT/GTB only) |
| Readability | 0.1 g (GT/GTB only) |
| Optical measurement | Laser Class 2, EN 60825-1:1994 (GTB only) |
| Laser measurement | ± 1° (GTB only) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
