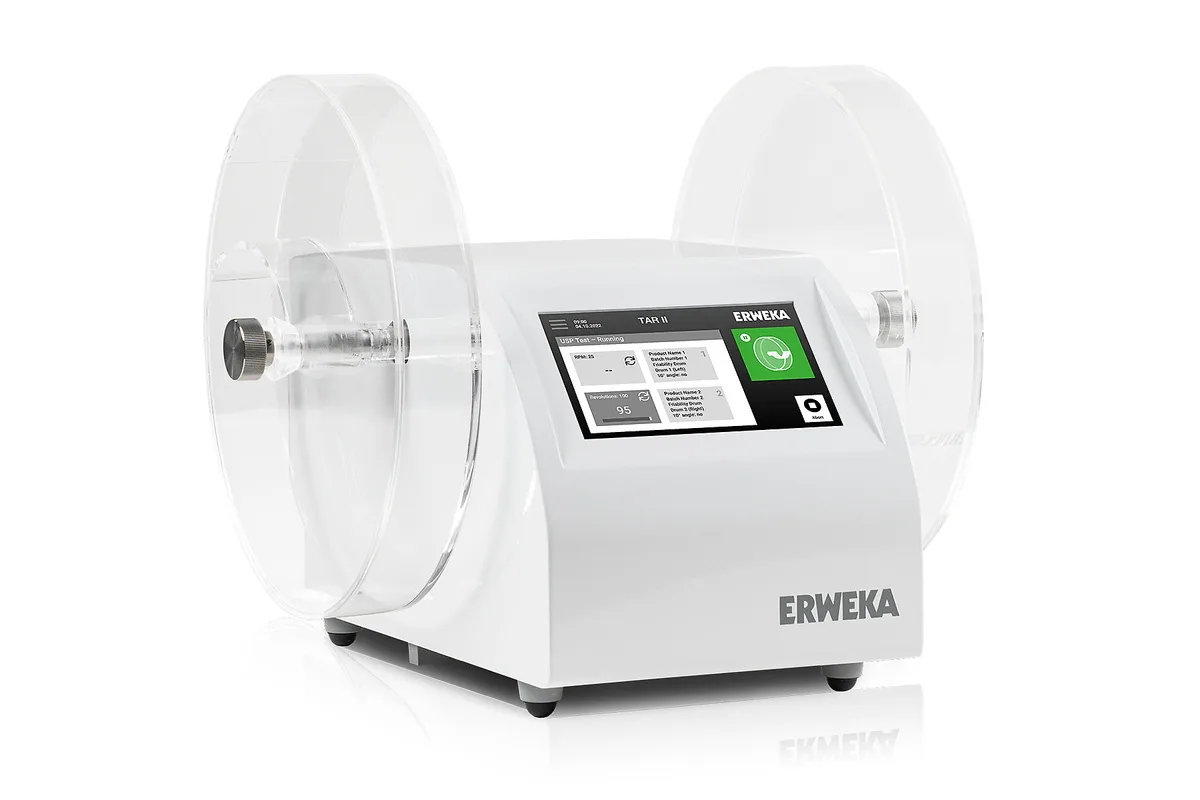

Friability Tester TAR II
Brand: Erweka | Category: Scientific & Laboratory Equipment
The TAR II is Erweka's upgradeable USP / EP / JP friability and abrasion tester. Its high resolution 7 inch touch display puts the operator's attention on compliant friability testing, with TestAssist automatic calculation guiding the process step by step and an advanced balance connection transferring and calculating data directly. TestAssist offers three testing modes covering revolutions, time and USP test, checking that every parameter is set correctly, and in USP mode it calculates results automatically and triggers repetition of the test where USP guidelines require it. The unit can be configured with one or two test stations plus an optional smart scale, and all of it can be retrofitted later. A stand for the 10 degree position required by USP / EP is included.
Plan your specification
Specify the TAR II weighing and testing workflow
TAR II supports one or two test stations and optional balance integration. Select the configuration around the tests your QC team performs.
- Test type and throughput
- State whether the method requires friability or abrasion testing, the required drums and the number of batches handled together. Ask for one- and two-station configurations where useful.
- Balance connection
- Direct transfer of weighing data is an option for supported balances. Share the existing balance make and model, or request a matched balance in the quotation.
- Result handling
- Agree the test mode, calculation workflow and report output. Identify the printer or other record-keeping arrangement and the qualification documents needed for acceptance.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 10 kg (without drums), 11.7 kg (1 drum), 13.4 kg (2 drums) |
| Dimensions (H x W x D) | 278 x 237 x 370 mm |
| Voltage | 100-240 V; 50-60 Hz |
| Fuses | 2 x 3.15 A |
| Interfaces | LAN, 2 USB, RS-232 |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Control | 7" high resolution touch display |
| Speed control | yes |
| Speed range | 20 to 100 min |
| Test duration, running time | Continuously adjustable, 30 s to 9 h 59 min 59 s |
| Test duration, number of revolutions | Continuously variable, 1 to 9999 revolutions |
| Compatible printers | Brother HL-L2370DN, Canon i-sensys LBP162dw, HP LaserJet Pro M203dne, HP LaserJet Pro M402dne, Kyocera ECOSYS P2235dn, Oki 431d, Oki B432dn |
| Ambient temperature in operation | +10 °C to +30 °C (Ambient temperature at least 5 °C lower than test temperature) |
| Storage and transport temperature | -10 °C to +55 °C |
| Relative humidity | 25 to 80 % non-condensing |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Friability or abrasion method and required drums
- One or two stations and expected batch workload
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
