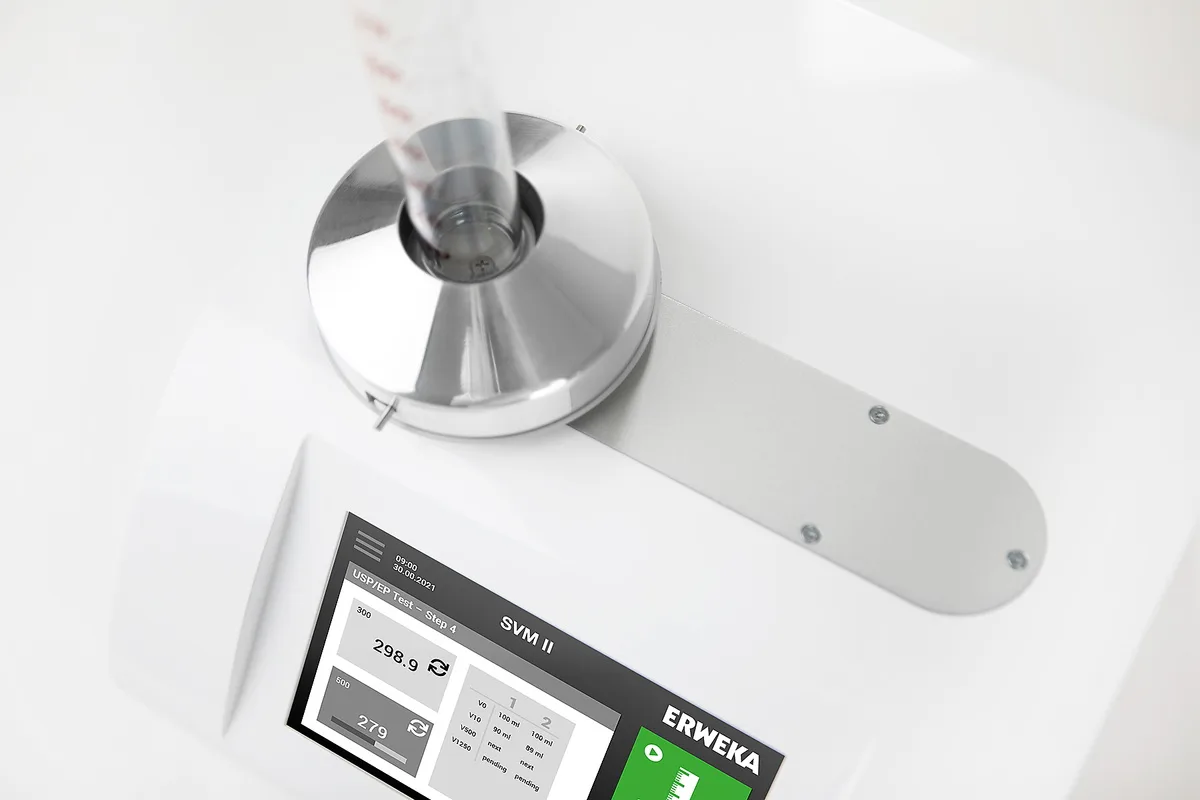

Tapped Density Tester SVM II
Brand: Erweka | Category: Scientific & Laboratory Equipment
The SVM II is Erweka's latest generation tapped density tester. Its 7 inch high resolution touch display keeps the operator focused on 100 % USP / EP compliant tapped density testing, and TestAssist automatic calculation walks the user through the process while working out the Hausner Ratio and compressibility index and printing a report after every test. A newly designed SwitchPlate system produces five versions of the instrument, covering USP 1, USP 2 or USP 3 in one or two test station configurations or a combination of both methods, and the user can change from one variant to another within minutes. Supported methods run from USP 1 and USP 2 through to ASTM B527-15 and DIN EN ISO 787-11:1995.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 17 kg |
| Dimensions (H x W x D) | 196.5 x 300 x 326 mm |
| Voltage | 115/230 V; 50/60 Hz |
| Fuses | 1 A |
| Interfaces | USB A/B, Ethernet, RS232 |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Control | 7" high resolution touch display |
| Test stations | 1 or 2 test stations using 5 different SwitchPlates |
| Data storage | 10 reports (temporarily) |
| Export | Network export via external software (Export manager) as XML / PDF |
| Ambient temprature during operation | +10 °C up to +30 °C |
| Storage and transport temperature | +5 °C up to +40 °C |
| Relative humidity | 25-80 % non condensing |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Laboratory Instruments
- Vacuum Leak Tester VDT/S
The VDT/S tests blisters and other packaging forms for leaks. Maximum vacuum, with an absolute pressure range up to 100 mbar, and the vacuum hold time before release are set from the symbol keypad, while the actual vacuum is shown continuously on the LED display. To check density the instrument runs a methylene blue dye test split into several phases: during pressure maintenance the blisters are exposed to a vacuum generated in the vacuum container, the container is then ventilated, and in the penetration process the blister rests in the methylene blue solution so the solution can be drawn into any imperfectly sealed packaging. Test run parameters such as actual and set vacuum value and hold time are documented through a USB interface or a connected printer, and the integrated vacuum pump can be recalibrated with the optional validation kit containing a type DVR vacuum meter.
- Manual Powder & Granule Density Tester SMG 697
The SMG 697 is a manual powder and granule density tester for reproducible determination of apparent bulk density, usable with all free flowing powders and granulates. Following DIN ISO 697, apparent bulk density is found by measuring the mass of a powder in a container of known size after filling from a funnel of specific shape under defined conditions. Erweka supply the device with operating instructions and a calibration certificate.
- Suppository Penetration Tester PM 30
The PM 30 measures the softening time of suppositories, which must disintegrate, dissolve or melt at body temperature for their active ingredients to be released. Erweka offer a version for EP method A and for method B: the PM 30 penetration tester is Apparatus A according to EP and the PM 3 is Apparatus B. Both were developed to give reproducible measurements of softening time at specified temperatures, and the design of the test device makes visual observation of melting characteristics straightforward. The unit consists of three test stations.
