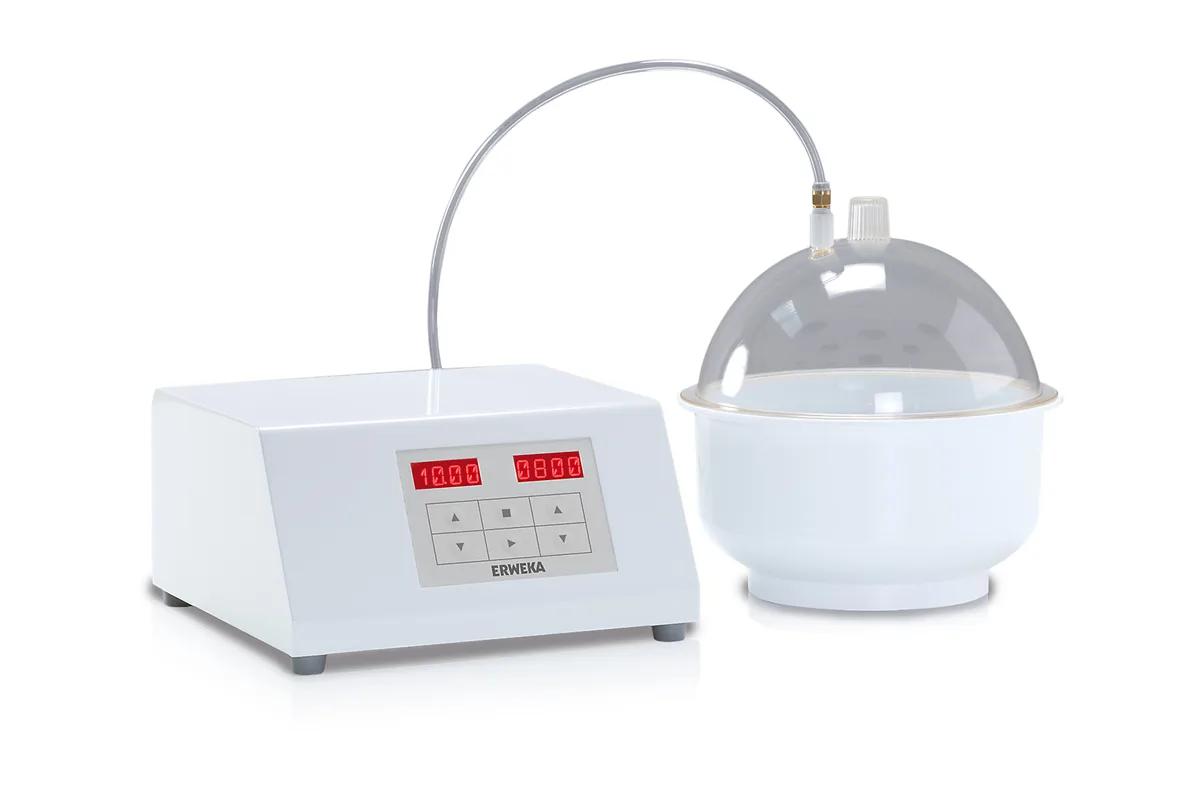

Vacuum Leak Tester VDT/S
Brand: Erweka | Category: Scientific & Laboratory Equipment
The VDT/S tests blisters and other packaging forms for leaks. Maximum vacuum, with an absolute pressure range up to 100 mbar, and the vacuum hold time before release are set from the symbol keypad, while the actual vacuum is shown continuously on the LED display. To check density the instrument runs a methylene blue dye test split into several phases: during pressure maintenance the blisters are exposed to a vacuum generated in the vacuum container, the container is then ventilated, and in the penetration process the blister rests in the methylene blue solution so the solution can be drawn into any imperfectly sealed packaging. Test run parameters such as actual and set vacuum value and hold time are documented through a USB interface or a connected printer, and the integrated vacuum pump can be recalibrated with the optional validation kit containing a type DVR vacuum meter.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 7 kg |
| Dimensions (H x W x D) | 166 x 300 x 340 mm |
| Voltage | 230 V/115 V / 100 Watt; 50-60 Hz |
| Exsiccator diameter | 150 mm (PC and PP) 200 mm (PC and PP) 250 mm (PC and PP) 300 mm (glass) |
| Operating temperature | 10 °C - 40 °C |
| Adjustable reduced pressure range | -100 to -700 mbar (exsiccator: Ø 300 mm) -100 to -900 mbar (exsiccator: Ø ≤ 250 mm) |
| Absolute pressure range (related to the atmospheric pressure) | ≥ 120 mbar |
| Adjustable range test run time | 99 hrs. 59 min. +/- 0.1 % 99 min. 59 sec. +/- 0.1 % |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
