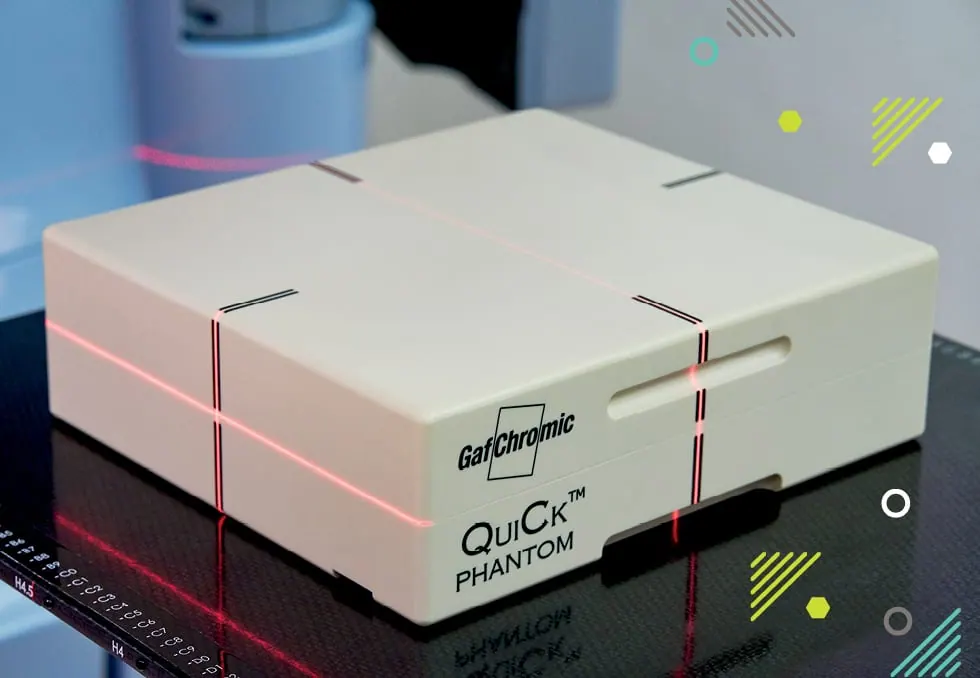

Gafchromic QuiCk Phantom device
Brand: Ashland | Category: Medical Equipment
A phantom for end to end testing of patient treatment verification, built from two slabs of Plastic Water and measuring 29 x 32 x 5 cm. It takes Gafchromic EBT3P film, which is pre punched to match the phantom's registration pins so the film can only be loaded in one orientation, and it indexes to CT and treatment couches with a standard two pin indexing bar.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Phantom construction | Two Plastic Water slabs |
| Overall dimensions | 29 × 32 × 5 cm |
| Film registration | Two asymmetric registration pins |
| Film option | Pre-punched EBT3P |
| Couch mounting | Two-pin couch indexing |
| Optional chamber slab | 2 cm slab with A14, A1SL or PTW 31016 insert options |
| Starter package code | 842062; includes one box of EBT3P |
Ashland Quick Phantom data. Confirm the couch interface, ion-chamber insert and film package; chamber inserts are options, not universal inclusions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Imaging modality or beam, energy range and intended QA test
- Phantom/dosimeter geometry, detector/readout compatibility and calibration needs
- Required test inserts, analysis software, certificates and acceptance criteria
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Ashland equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
