GSA L84
Brand: Linseis | Category: Nanotechnology

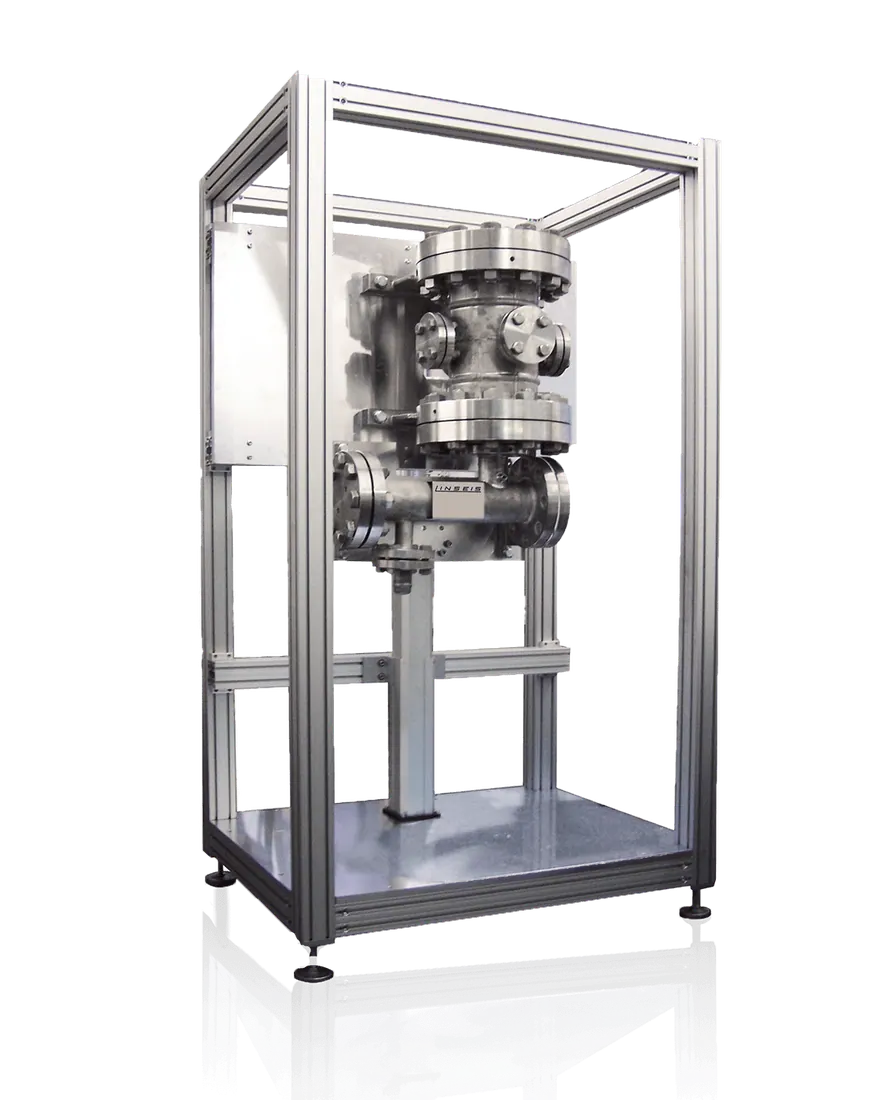

The GSA L84 is a gravimetric sorption analyser with an integrated DSC, so mass change and heat flow are recorded from the same sample. It measures gas and vapour uptake under controlled temperature and pressure at up to 150 bar. It is used for sorption studies where the heat effect is also required.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT up to 1100°C and max. 150 bar, RT up to 1400/1800°C and max. 50 bar |
| Vacuum | 10E-4 mbar |
| Max. sample weight | 2/15/100g |
| TG resolution | 0.1/0.5/10 µg |
| DSC resolution | 0.3/0.4/1 µW |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thermal Analysis & Thermophysical Measurement
- GSA L87
The GSA L87 is a high pressure gravimetric sorption analyser built around a magnetic suspension balance. It measures the mass change of a sample as it takes up or releases gas or vapour, with a choice of gas systems and a DSC signal alongside the mass signal, at pressures up to max. 150 bar.
- GSA L81
The GSA L81 is a gravimetric sorption analyser that measures the mass change of a sample as it takes up or releases gas or vapour under controlled temperature and pressure. An ultra sensitive microbalance records the uptake from vacuum up to 15 bar. It is used for sorption, TPD, TPO and TPR studies.
- IBC L91
The IBC L91 is an isothermal battery calorimeter that measures the heat given off by a battery cell or module during operation. Heat flow is resolved across the measuring plate by an array of sensors, down to a calorimetric resolution of 0.1 mW. It is used in battery development and safety testing.
