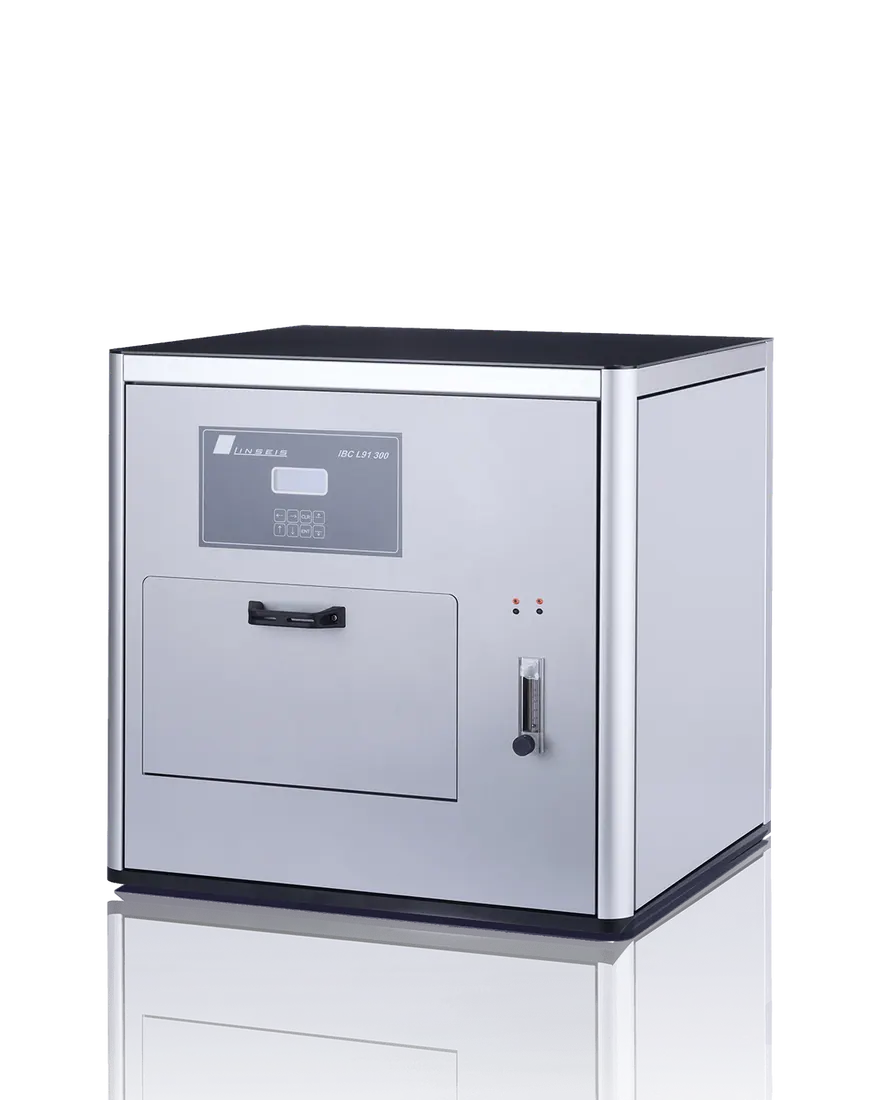

IBC L91
Brand: Linseis | Category: Nanotechnology
The IBC L91 is an isothermal battery calorimeter that measures the heat given off by a battery cell or module during operation. Heat flow is resolved across the measuring plate by an array of sensors, down to a calorimetric resolution of 0.1 mW. It is used in battery development and safety testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring plate | 80 x 80 mm, 300 x 300 mm, 600 x 600 mm, others on request |
| Sample height | up to 100 mm |
| Measuring range | max. 10W (for 80 x 80 mm measuring plate) |
| Calorimetric resolution | 0.1 mW |
| Calorimetric accuracy | 0.5 mW |
| Heat flux dimensional resolution | 8 sensors (for 80 x 80 mm measuring plate) |
