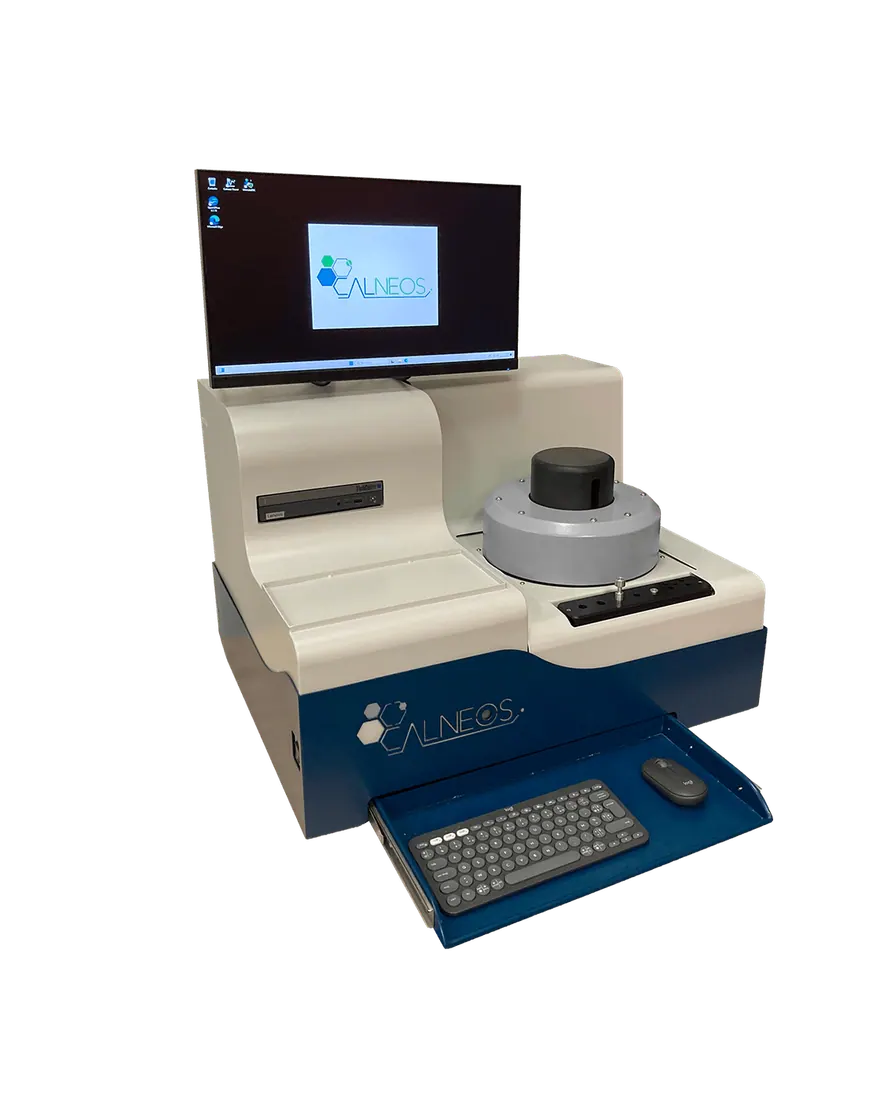

CAL L92
Brand: Linseis | Category: Nanotechnology
The CAL L92 is a differential temperature scanning microcalorimeter that measures the heat taken up or released by a sample as its temperature is changed. Its sensitivity suits all types of materials, including very dilute solutions. It runs from -60 °C to 170 °C at 0.001 to 5 °C/min.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -60 °C to 170 °C |
| Scan rates | 0.001 to 5 °C/min |
| Measurement range | ±150 mW |
| Temperature regulation precision | 100 µ°C |
| RMS noise | 0.05 μW |
| Measurement time | 30 to 60 min per experiment |
