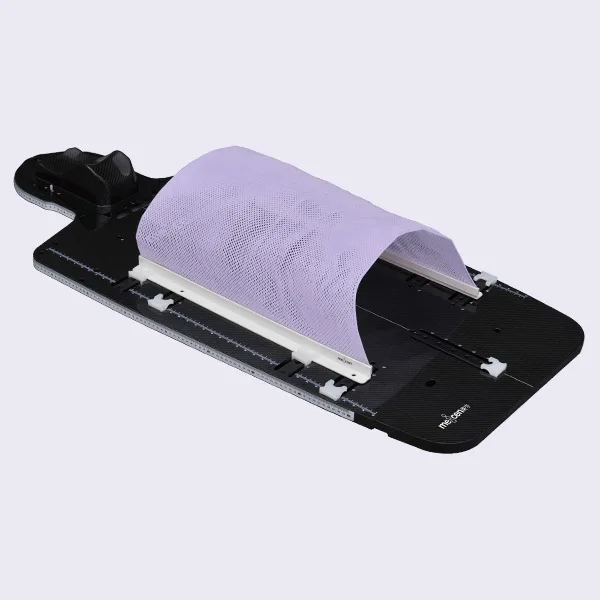

H-Type Violet Thermoplastic Masks
Brand: Meicen | Category: Medical Equipment
H-Type violet thermoplastic masks are made by Meicen to fit its own B-Series baseplates. All eight published references are trunk masks covering the chest and pelvis, supplied as standard, standard with groin lock, reinforced and solid. Standard and groin lock sheets are published at 22% perforation in 2.4mm and 38% perforation in 3.0mm, while reinforced and solid sheets are listed at 2.4mm and 3.0mm. Thicknesses of 2.0mm and 3.2mm are also obtainable when specified at enquiry.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Variant | Thickness / perforation |
|---|---|
| M2422-VHT190W | 22% perforation, 2.4mm |
| M3038-VHT480W | 38% perforation, 3.0mm |
Manufacturer catalogue checked 2026-09-29.
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Treatment position, patient group and immobilisation workflow
- Mask/cushion dimensions, perforation, thickness and baseplate/indexing compatibility
- Reusable versus consumable items, cleaning instructions and quantities
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Meicen equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
