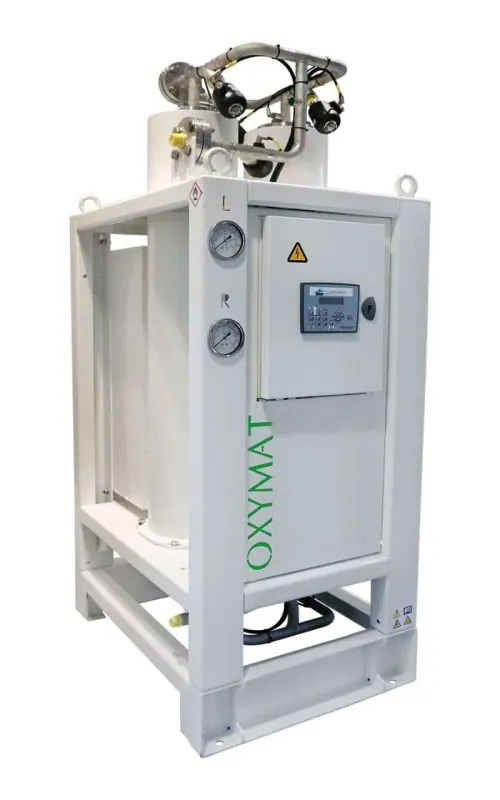

Half pallet Nordic nitrogen generator
Brand: Oxymat | Category: Scientific & Laboratory Equipment
Half euro-pallet PSA nitrogen generator, light enough to move easily and small enough for constrained plant rooms. It is aimed at nitrogen supply in manufacturing, food and beverage and electronics work.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 7 to 30 Nm3/h at 95.5% purity |
| Specification | Energy consumption from 0.19 kW/Nm3 |
| Models | Half pallet-1 (20L, 290 kg), Half pallet-2 (40L, 330 kg), Half pallet-3 (60L, 370 kg) |
| Dimensions L x W x H | 790 x 590 x 1350 mm to 790 x 590 x 2197 mm |
| Specification | Half euro-pallet size |
| Specification | Modbus RTU communication, LED visual operation status |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxymat equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
