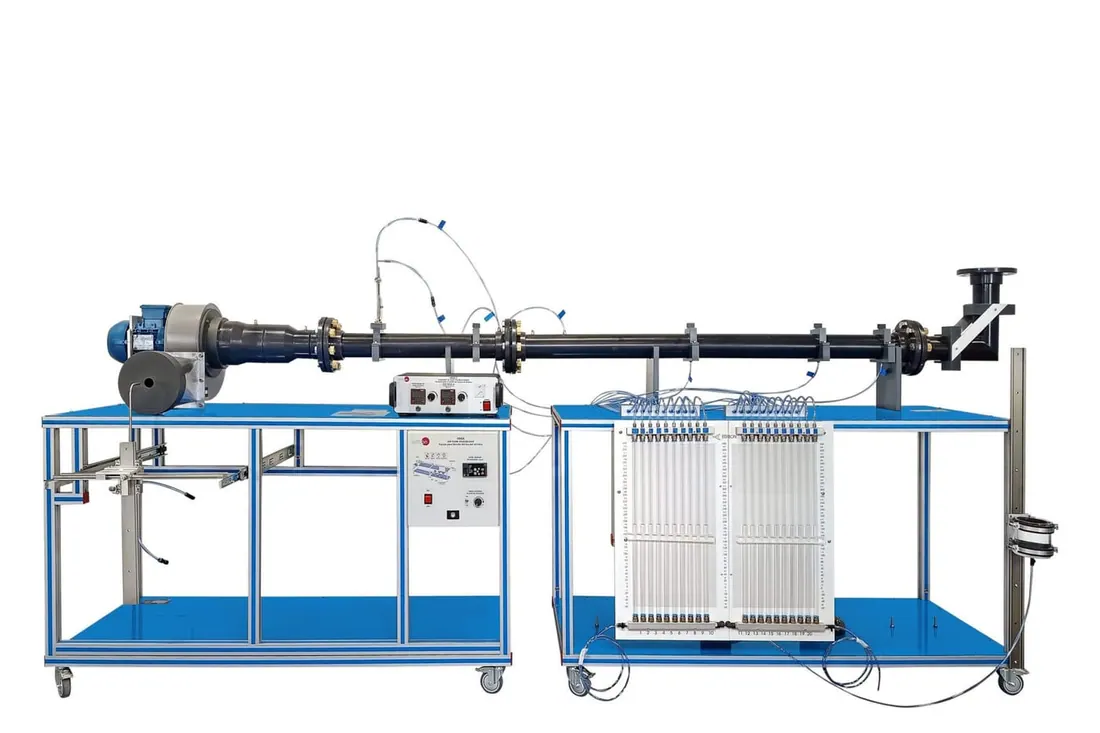

HECA: Air Flow Studies Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HECA is a bench for studying air flow. A fan drives air through ducts fitted with orifice plates, venturis, nozzles and Pitot tubes, so flow measurement methods can be compared and pressure losses along the duct measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3000 x 600 x 1400 mm approx |
| Weight | 90 Kg approx |
| Max. volumetric flow rate | 1800 m³/h |
| Max. motor power | 750 W |
