HMFAC: Computer Controlled Axial Flow Turbomachines Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

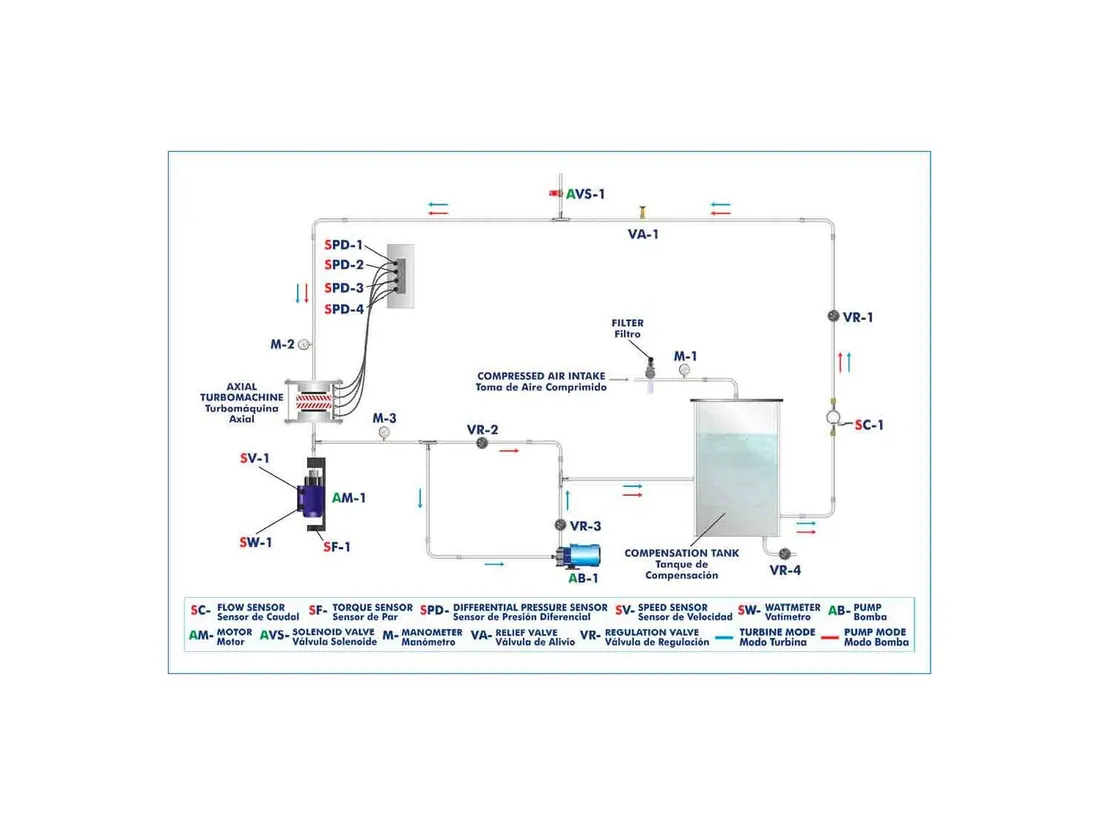

HMFAC is a computer controlled unit for studying axial flow turbomachines. The machine can be run as a pump or as a turbine while flow, head, speed and torque are logged, allowing the two modes of operation to be compared.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 2800 x 900 x 2100 mm approx |
| Weight | 400 kg approx |
| Torque | 0 to 5 N·m |
| Maximum flow | 150 m³/h |
| Maximum height | 10 m |
| Compensation tank with air mattress, capacity | 150 l |
