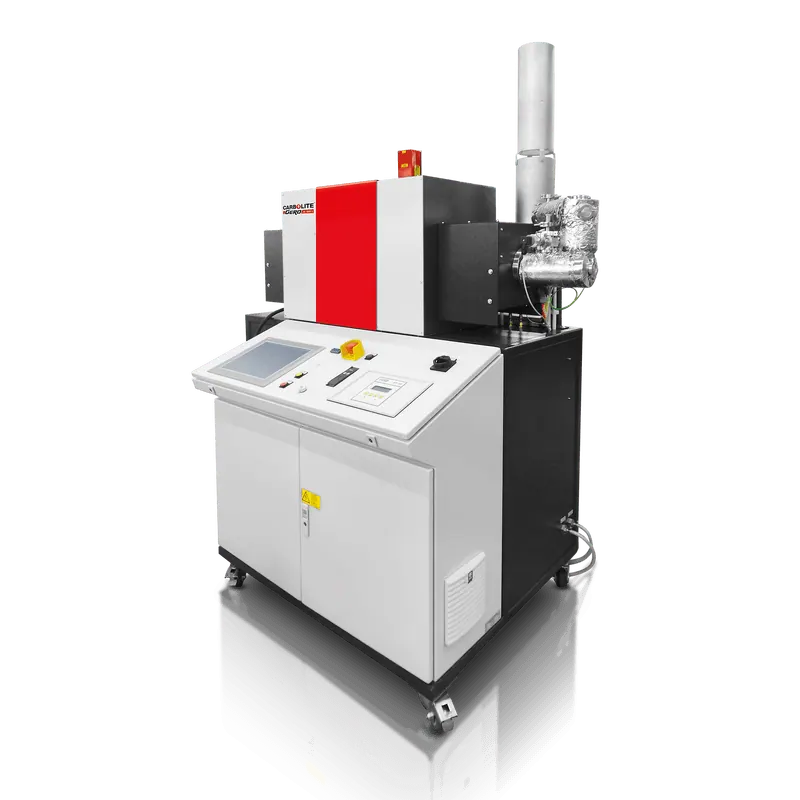

Hydrogen Tube Furnace HTRH-H2
Brand: Carbolite Gero | Category: Nanotechnology
A tube furnace system based on the HTRH 16/100/600, engineered for safe handling of hydrogen. A ceramic tube with water cooled leak tight flanges is flooded with inert gas before hydrogen is admitted, and the outlet feeds an afterburner.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1600 deg C, including in a pure hydrogen atmosphere |
| Specification | Based on the HTRH 16/100/600 tube furnace |
| Specification | Ceramic work tube with water cooled leak tight flanges at both ends |
| Specification | Inert gas flooding tank purges oxygen before hydrogen is introduced |
| Specification | Afterburner driven by compressed air and propane combusts outgoing hydrogen |
| Specification | Hydrogen sensor at the top of the furnace, all devices manufactured to SIL2 |
