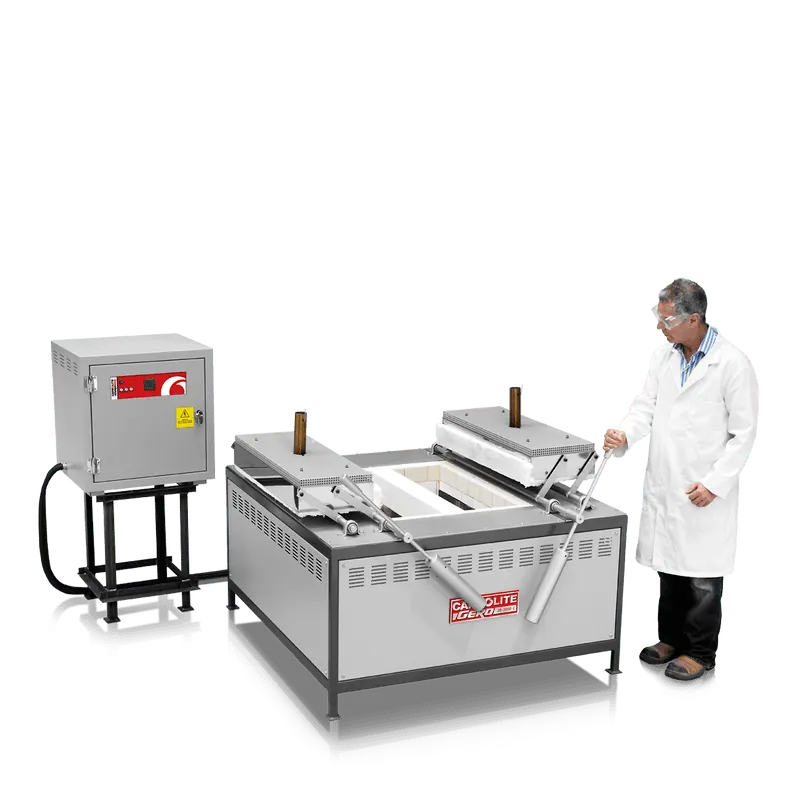

Smelting Furnace SCF
Brand: Carbolite Gero | Category: Nanotechnology
A top loading crucible furnace range designed for smelting precious metals. Horizontal parallel opening lids move the hot face away from the user, and silicon carbide elements around the chamber sides are protected by silicon carbide tiles.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1400 deg C, maximum continuous operating temperature 1350 deg C |
| SCF 1 | single chamber 440 x 285 x 285 mm, 15000 W |
| SCF 4 and SCF 8 | twin chambers holding 4 or 8 crucibles of 120 x 180 mm |
| SCF 24 and SCF 48 | twin chambers holding 24 or 48 crucibles of 79 x 97 mm |
| Specification | Thermocouple type R, maximum power 15000 W to 24000 W |
| Specification | 24 hour, 7 day timer fitted as standard |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
