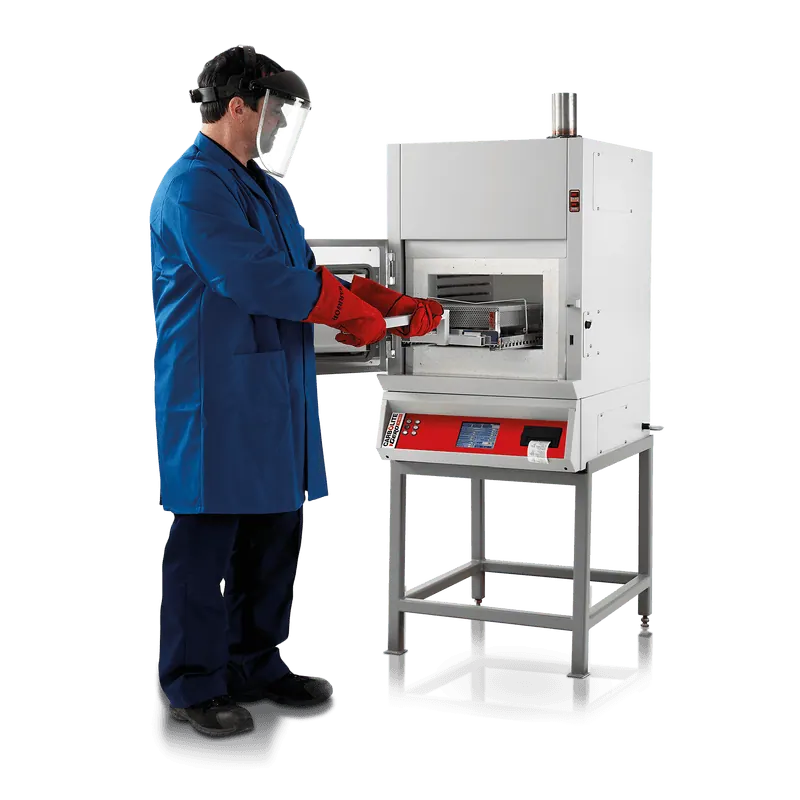

Asphalt Binder Analyzer ABA 7/35B
Brand: Carbolite Gero | Category: Nanotechnology
A bench top analyser that measures the binder content of hot mix asphalt by loss on ignition. An integral microprocessor controlled weighing system calculates the result, and a high temperature afterburner reduces noxious fumes.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 750 deg C, afterburner 950 deg C |
| Complies with AASHTO T 308-10, ASTM D6307-19 and BS EN 12697-39 | 2020 |
| Specification | Maximum sample 4.5 kg, weight resolution 0.1 g |
| Specification | Internal 220 x 350 x 450 mm, external 980 x 600 x 775 mm, 120 kg |
| Specification | Maximum power 8000 W, holding power approximately 3 kW |
| Specification | Test times from 20 minutes for 6 mm aggregates to 45 minutes for 40 mm |
