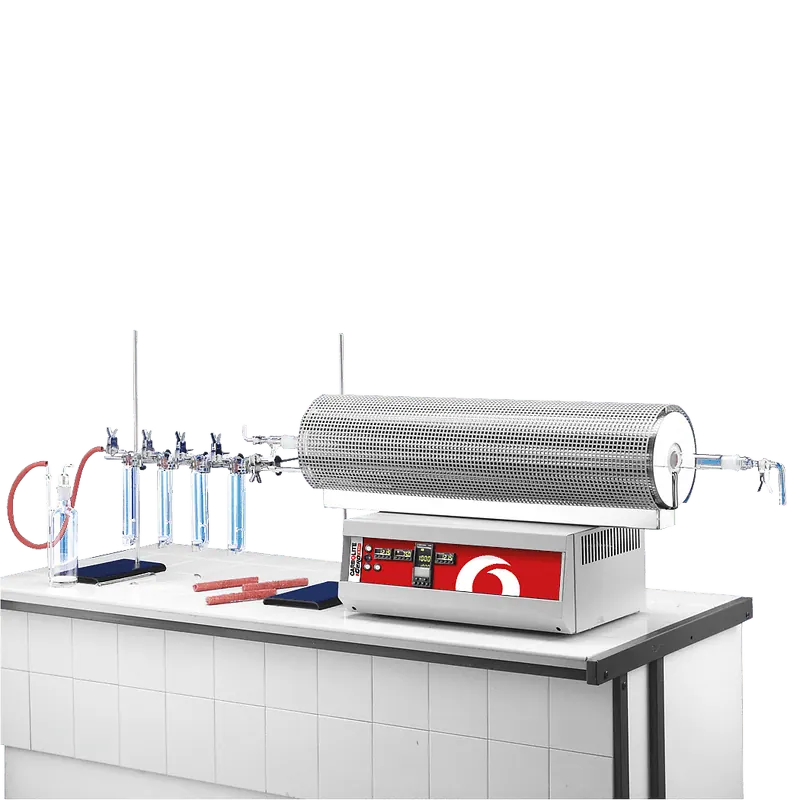

Carbon14-Tritium Furnace MTT 12/38/850
Brand: Carbolite Gero | Category: Nanotechnology
A two zone tube furnace that uses catalyst assisted combustion to extract carbon-14 and organically bound tritium from samples such as concrete, steel and graphite. Combustion products are captured for liquid scintillation assay.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1200 deg C |
| Specification | Heated tube length 850 mm, furnace body length 900 mm |
| Sample capacity | up to 20 ml |
| Specification | Maximum power 3100 W, thermocouple type N, weight 60 kg |
| Specification | 3508P1 20 segment programmable control, over-temperature protection on both zones |
| Specification | Supplied with 2 quartz work tube assemblies, 6 combustion boats and 12 gas bubblers |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
