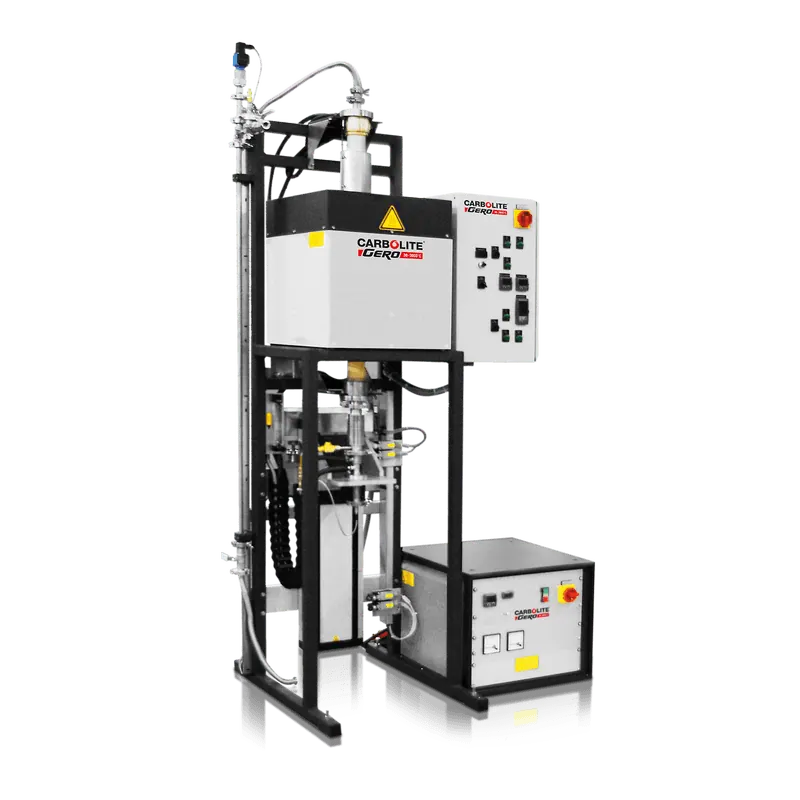

Crystal Growth Furnace BV-HTRV
Brand: Carbolite Gero | Category: Nanotechnology
A vertical tube furnace mounted on a pulling device for crystal growth by the Bridgman method. The sample moves slowly down through a decreasing temperature gradient so that the melt forms a single crystal, and the unit can be run under vacuum.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | HTRV 70-250 or HTRV 100-250 tube furnace used as standard on the pulling device |
| Specification | Short heated length creates the gradient required for the Bridgman method |
| Specification | Adjustable pulling speed, with fast travel for loading and unloading |
| Specification | Probe thermocouple sits next to the sample on the pulling device |
| Specification | Ceramic tube with water cooled flanges at both ends and a bellows at the base |
| Specification | Vacuum operation with piezo gauge and manual rotameter for inert gas purging |
