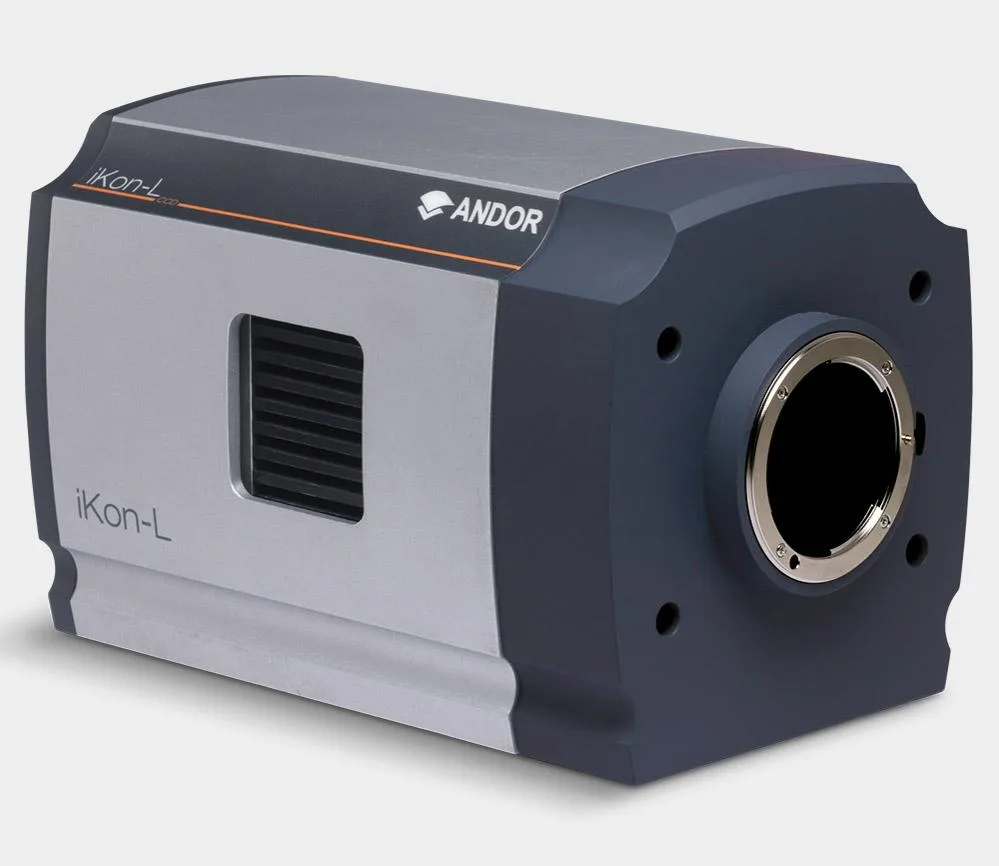

iKon Slow-Scan Large CCD Cameras
Brand: Oxford Instruments | Category: Nanotechnology
The iKon slow scan CCD series applies thermoelectric cooling to -100 °C for very low noise, with back-illuminated photon collection across a broad spectral range and wide dynamic range. Its low maintenance design suits long exposure, low light work in astronomy and weak luminescence detection, and it is robust enough for remote observatories. A Fast Kinetics mode can also capture bursts of data with microsecond dynamics for quantum gas absorption experiments. Two models are offered, the 2048 x 2048 iKon-L 936 and the 1024 x 1024 iKon-M 934, with standard silicon and deep depletion sensor options for enhanced near infrared response.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model | iKon-L 936 | iKon-M 934 |
|---|---|---|
| Sensor Format | 2048 x 2048 | 1024 x 1024 |
| Sensor Diagonal (mm) | 39 | 18.8 |
| Pixel Size (µm) | 13.5 | 13 |
| QE max (%) | 95 | 95 |
| QE Profile Options | BV, BU2, BEX2-DD, FI | BV, BU2, BEX2-DD, FI |
| Cooling (°C) | -100 | -100 |
| Darkcurrent (e-/pix/sec) | 0.000059 | 0.00012 |
| Read Noise (rms e-) | 2.9 | 2.9 |
Manufacturer catalogue checked 2026-09-29.
Selected manufacturer comparison data, with each model retained in its own column. Performance depends on the chosen sensor, optics and operating conditions. Confirm the exact model and options in the current quotation.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
