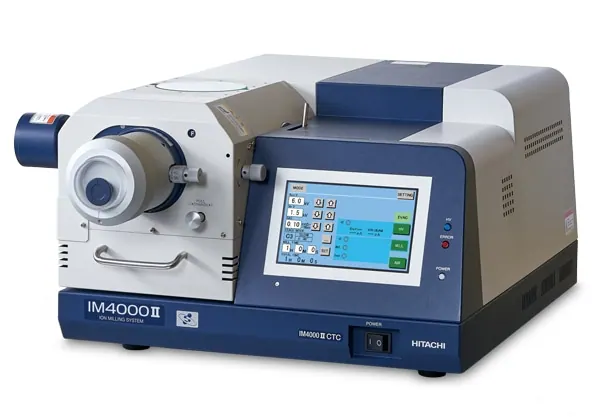

Ion Milling System IM4000II
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The IM4000II is an argon ion milling system that carries out both cross section milling and flat milling in one instrument. Options for cooled temperature control and an air protection holder allow preparation of heat sensitive and air sensitive specimens.
Technical Specifications
| Parameter | Value |
|---|---|
| Gas used | argon |
| Accelerating voltage | 0.0 to 6.0 kV |
| Cross section milling rate on silicon | 500 µm/h or more |
| Maximum flat milling area | 32 mm diameter |
| Maximum specimen size for cross section milling | 20 x 12 x 7 mm |
| Size | 616 x 736 x 312 mm, main unit 53 kg |
