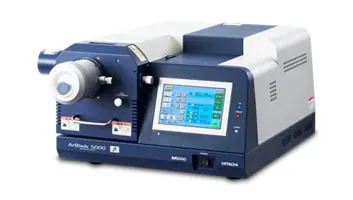

Ion Milling System ArBlade 5000
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The ArBlade 5000 is a broad argon ion beam milling system that prepares cross sections and flat milled surfaces for electron microscopy. Intermittent beam irradiation and a swinging stage produce clean faces across a wide range of materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Gas used | argon |
| Accelerating voltage | 0 to 8 kV |
| Cross section milling rate on silicon | 1 mm/h or more |
| Maximum milling width | 8 mm with wide area cross sectional milling holder |
| Flat milling area | 32 mm |
| Swing angle | ±15°, ±30°, ±40° |
