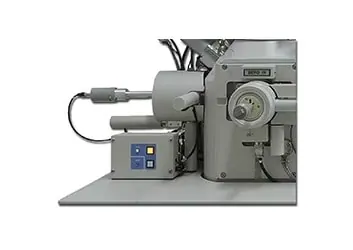

FIB Micro-sampling System
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The Micro-sampling System extracts a small pillar of material from a chosen point on a wafer using the ion beam inside the vacuum chamber of a FIB system. The extracted sample is then trimmed and transferred for analysis by TEM or STEM.
Manufacturer-listed workflow
| Parameter | Value |
|---|---|
| Sample preparation | FIB extraction of a site-specific specimen in vacuum |
| Transfer | Micro-sample transfer to a compatible holder |
| Downstream analysis | STEM or TEM specimen preparation |
The manufacturer describes a preparation method and compatible holder workflow. Beam voltage and imaging performance belong to the selected FIB/STEM/TEM instruments, not to this accessory as a universal rating. Checked 2026-09-29.
