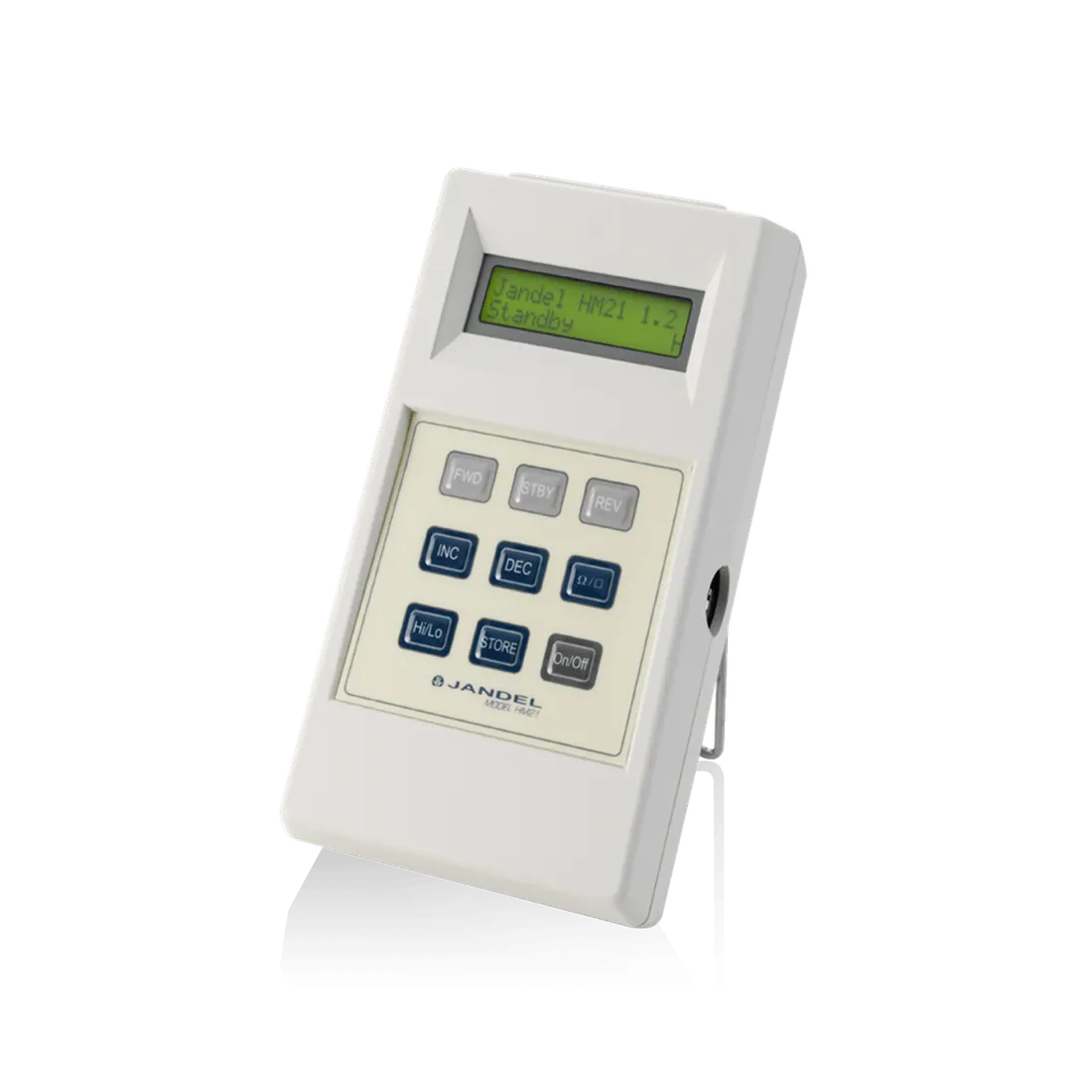

Jandel HM21 Test Unit
Brand: Jandel Engineering | Category: Nanotechnology
The HM21 is Jandel's compact four point probe test unit with six switched constant current settings. It is the unit paired with the Hand Applied Probe in the Portable Probing System, so measurements can be made away from the laboratory bench.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Six constant current settings between 100 nA and 10 mA |
| Voltage measurement | 0.01 mV to 1250 mV |
| Sheet resistance range | 1 ohm per square to 10 megohms per square |
| Volume resistivity range | 10 milliohm.cm to 10 kohm.cm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
