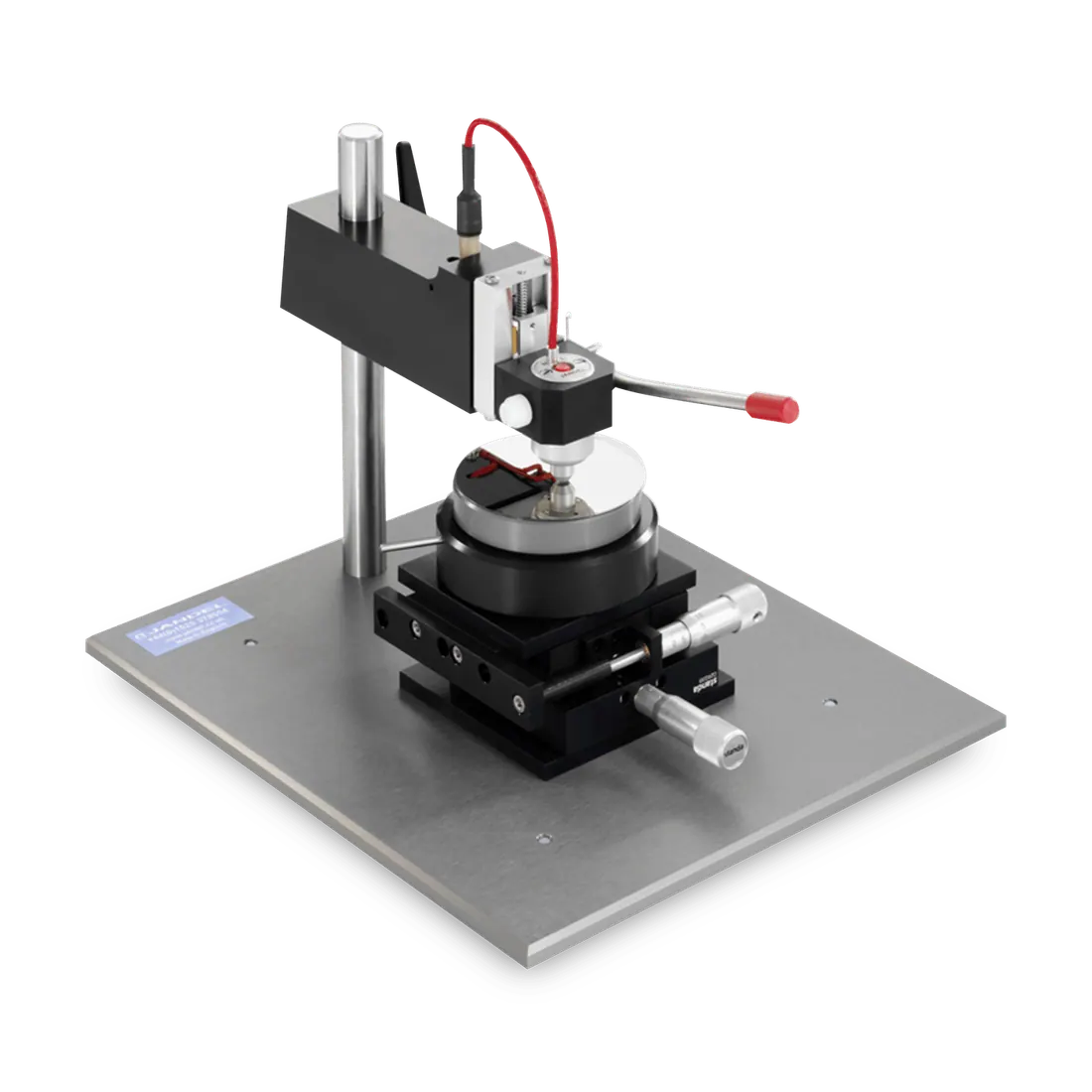

Jandel Multiheight / Microposition Probe Stand
Brand: Jandel Engineering | Category: Nanotechnology
This version of the Multiheight stand adds a micrometer controlled X-Y stage for small samples. Four screws release the stage, so the same stand returns to handling large wafers and ingots without further adjustment.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Measures sample sizes from several mm square up to 300 mm |
| Specification | X-Y microposition table removes with four screws |
| Specification | Accommodates large samples up to 300 mm diameter |
| Specification | Accommodates ingots up to 250 mm thick, thicker on request |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
