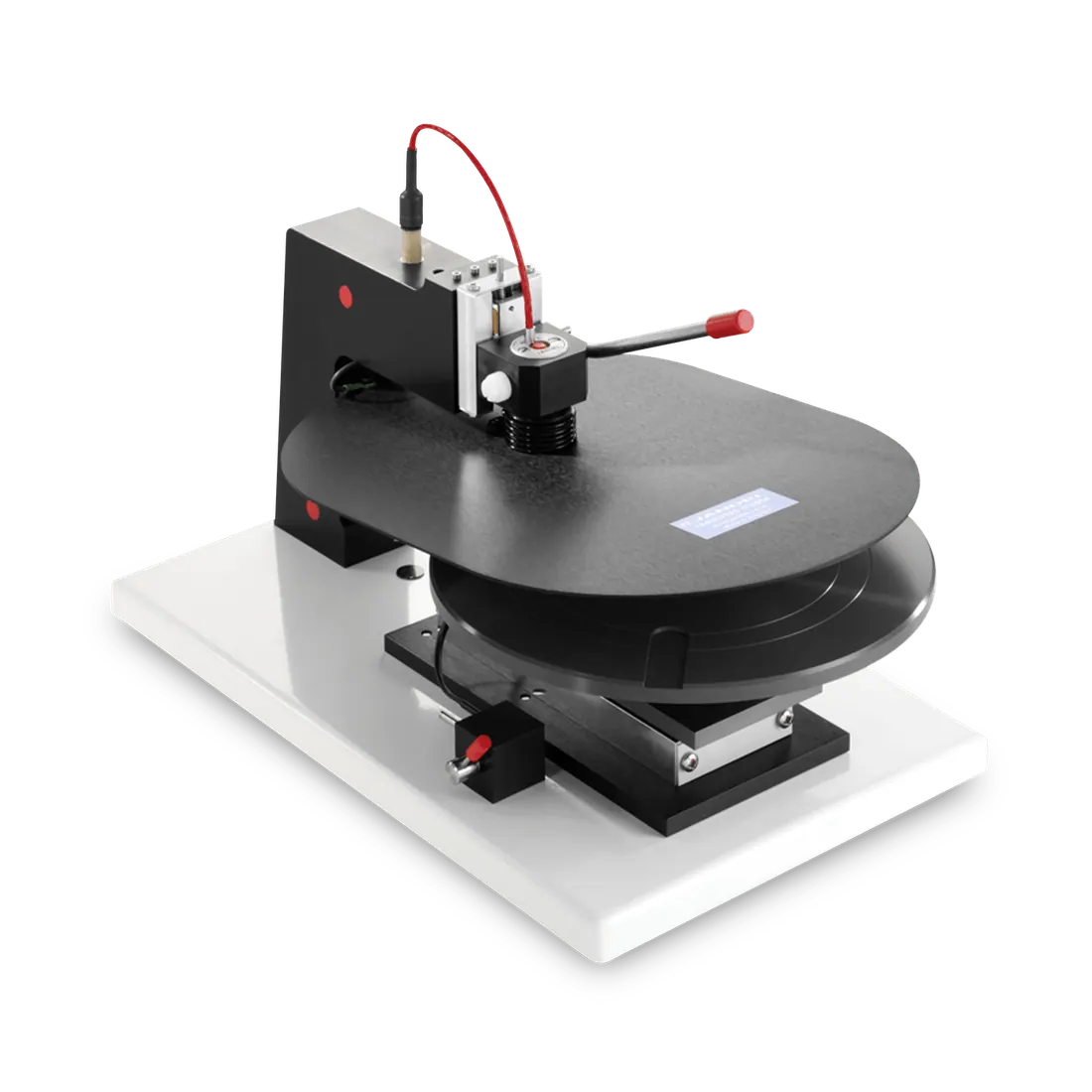

Jandel Multiposition Wafer Probe Stand
Brand: Jandel Engineering | Category: Nanotechnology
The Multiposition Probe Stand is built for wafer measurement, with indexed rotation and linear travel that return the probe to the same points run after run. Two sizes are offered at the same cost, the smaller one being easier for placing small wafers on the table.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Available for wafers up to 150 mm or up to 200 mm diameter at the same cost |
| Specification | Theta movement clicks into four positions at 90 degrees |
| Specification | Linear movement in up to 10 positions |
| Repeat placement accuracy | +/-1 mm |
