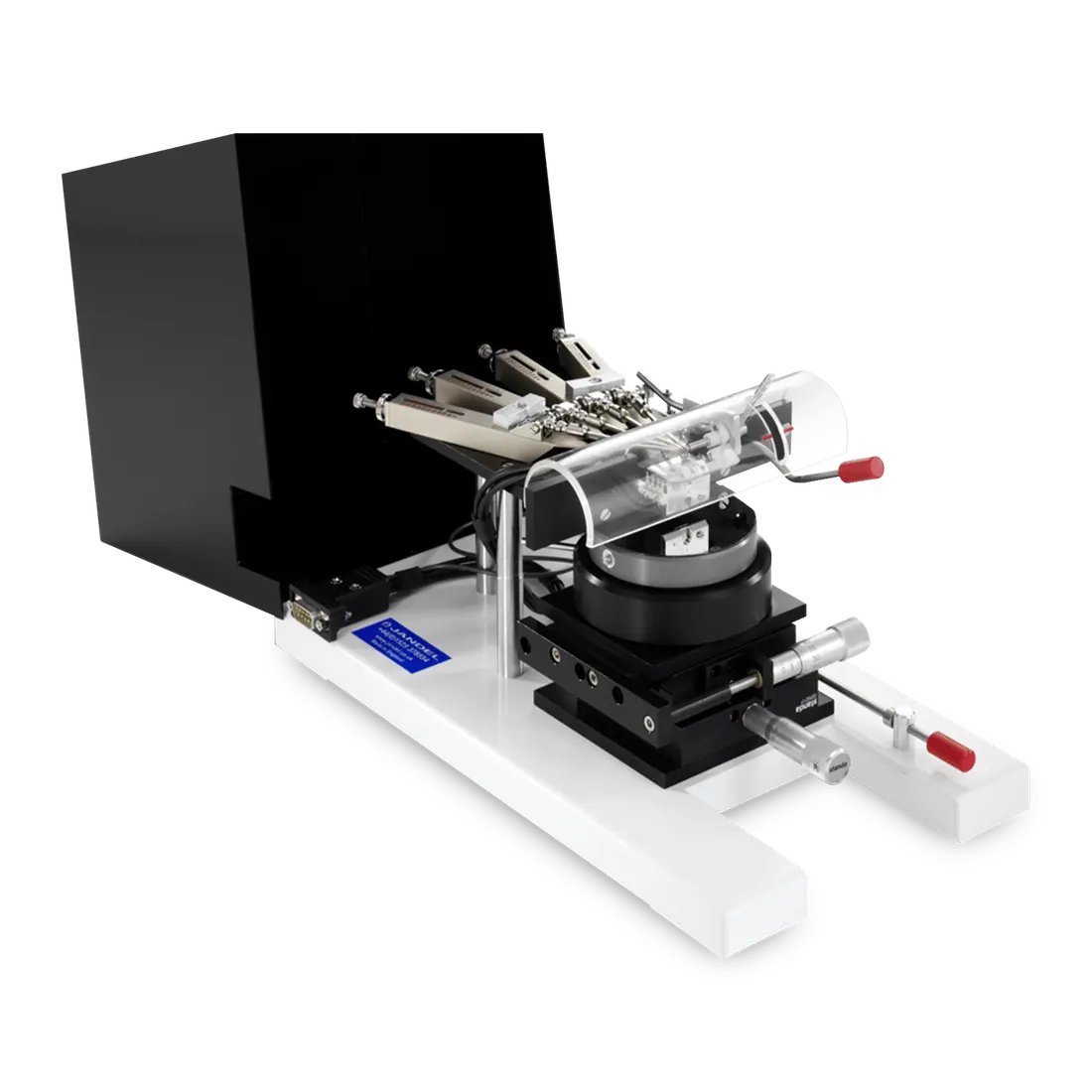

Jandel Universal Probe Station
Brand: Jandel Engineering | Category: Nanotechnology
The Universal Probe Station handles both four point probe and three point spreading resistance measurements. All four needles are adjustable for load and can be replaced by the user, and an X-Y stage gives fine movement for targeting small samples.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum sample size | 76 mm |
| Specification | X-Y stage with micromanipulation over 25 mm |
| Specification | Suitable for four point probe and 3 point spreading resistance measurements |
| Specification | All four probe needles individually adjustable for load |
| Specification | Needles individually replaceable by the end user |
