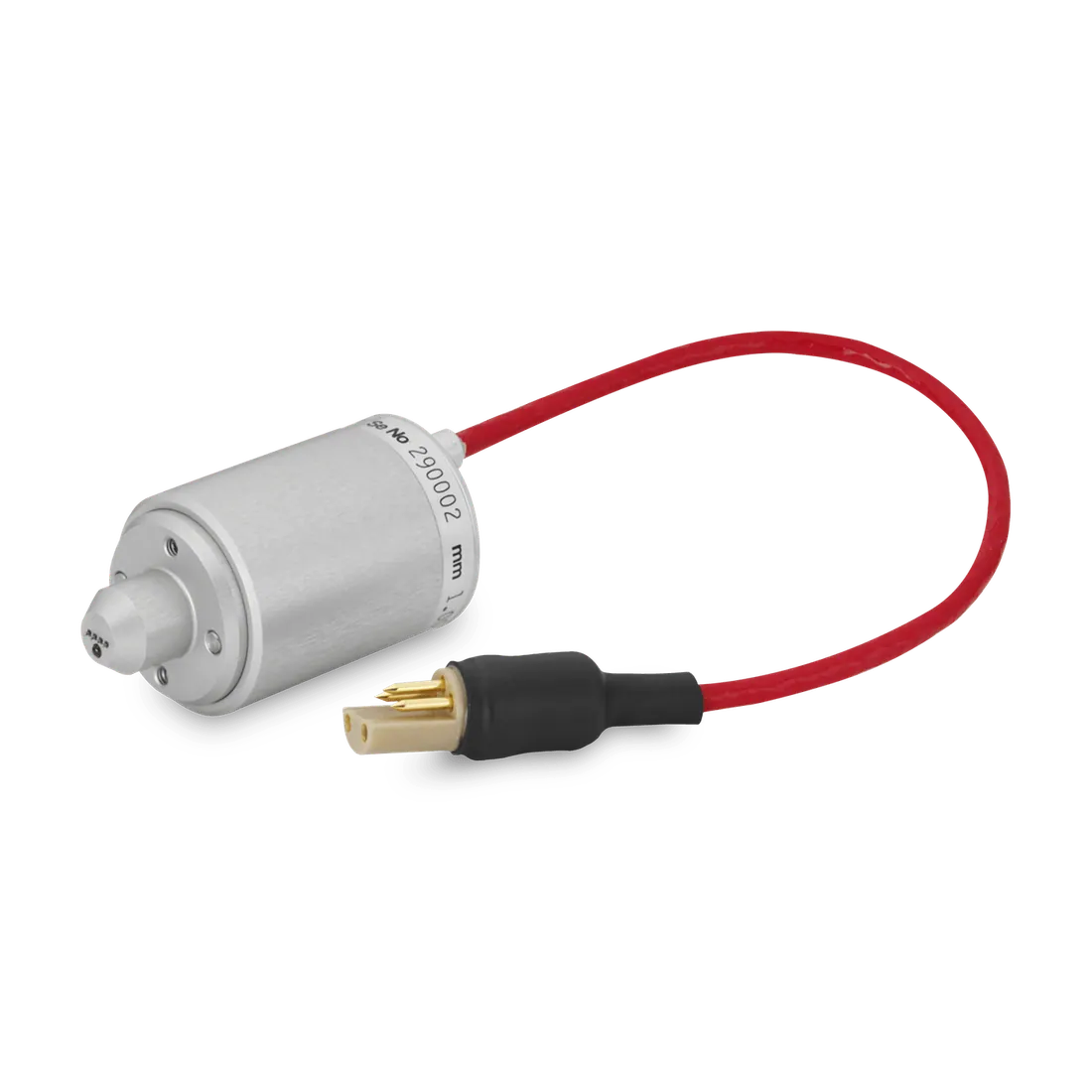

Jandel cylindrical four point probe
Brand: Jandel Engineering | Category: Nanotechnology
The cylindrical four point probe head fits Jandel probe stands, some OEM mapping systems and equipment made by Four Dimensions. The plain cylindrical body also suits customers building their own probe mount, and a mounting adapter is offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Needle loads fixed between 10 g and 200 g |
| Specification | Load fixed between 60 g and 100 g for 0.500 mm spacing probes |
| Specification | Upper and lower jewelled needle guides |
| Specification | Radii, spacing and planarity verified by video inspection system and optical interferometer |
| Specification | Loads verified by electronic force gauge |
