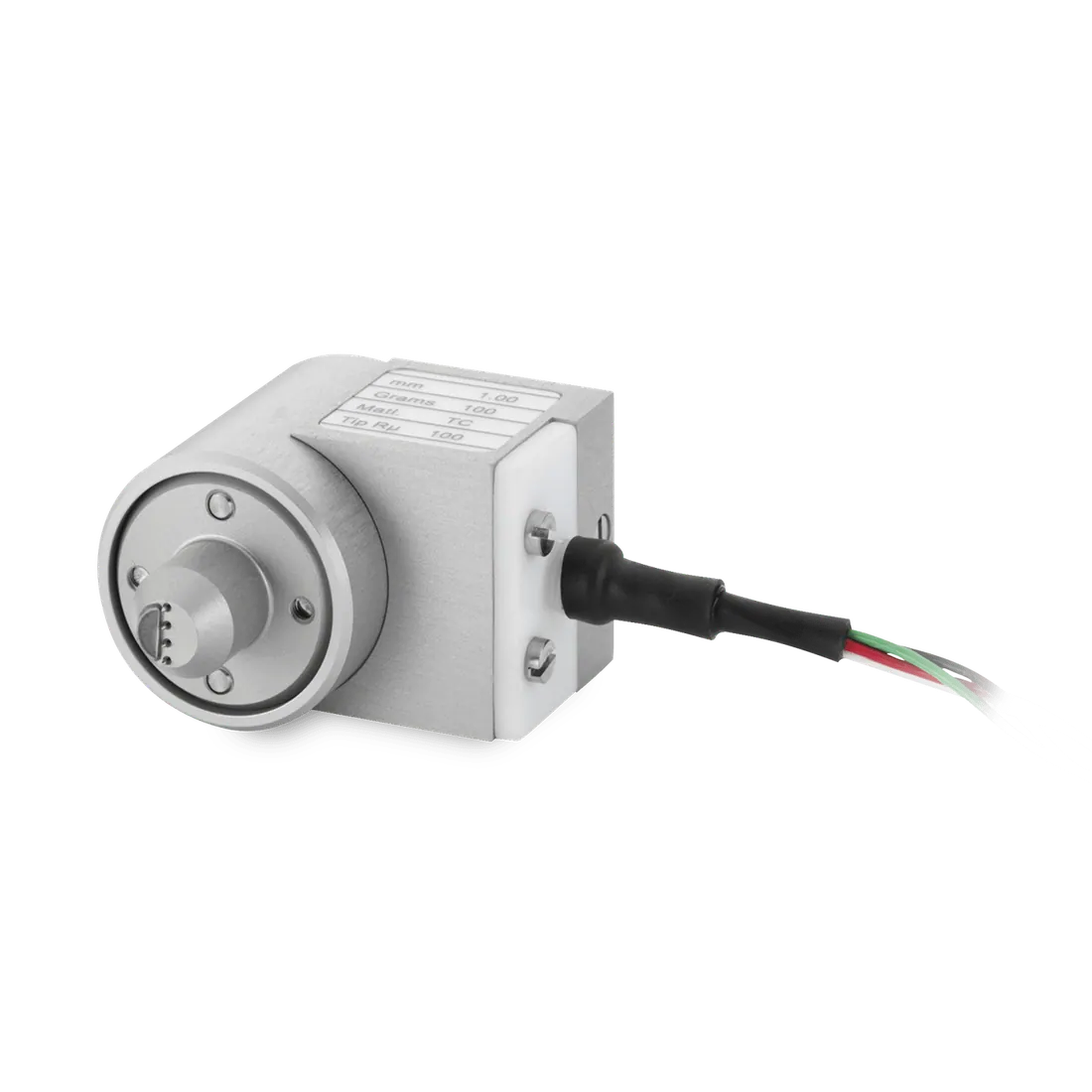

Jandel Veeco Cartridge with Lead
Brand: Jandel Engineering | Category: Nanotechnology
The cartridge with lead probe head is made for use on customer built equipment, some Veeco tools, and installations that previously used an A and M Fell style probe. Other Veeco tools take the Compact Probe instead.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | For customer built equipment, some Veeco equipment, or where an A and M Fell style probe was used |
| Specification | Upper and lower jewelled needle guides |
| Specification | Radii, spacing and planarity verified by video inspection system and optical interferometer |
| Specification | Loads verified by electronic force gauge |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
