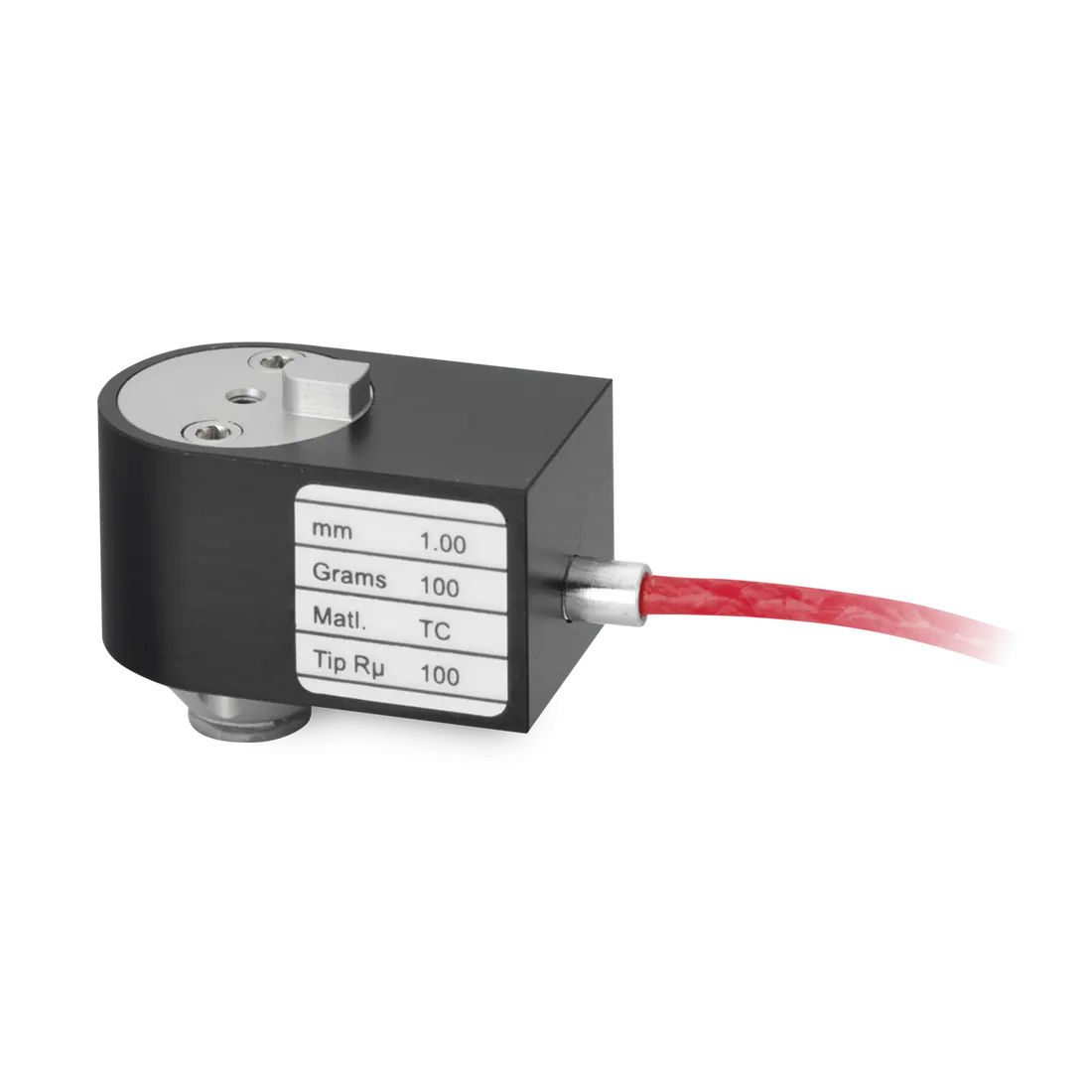

Napson Miniature
Brand: Jandel Engineering | Category: Nanotechnology
The miniature cartridge with positioning key is made for older Napson and Kokusai equipment. It closely resembles the AIT cartridge probe, so the target tool should be confirmed before ordering. It is built to the same mechanical tolerances as the rest of the Jandel probe range.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Miniature cartridge with positioning key |
| Specification | For older Napson and Kokusai equipment |
| Specification | Upper and lower jewelled needle guides |
| Specification | Radii, spacing and planarity verified by video inspection system and optical interferometer |
| Specification | Loads verified by electronic force gauge |
