CDE ResMap
Brand: Jandel Engineering | Category: Nanotechnology

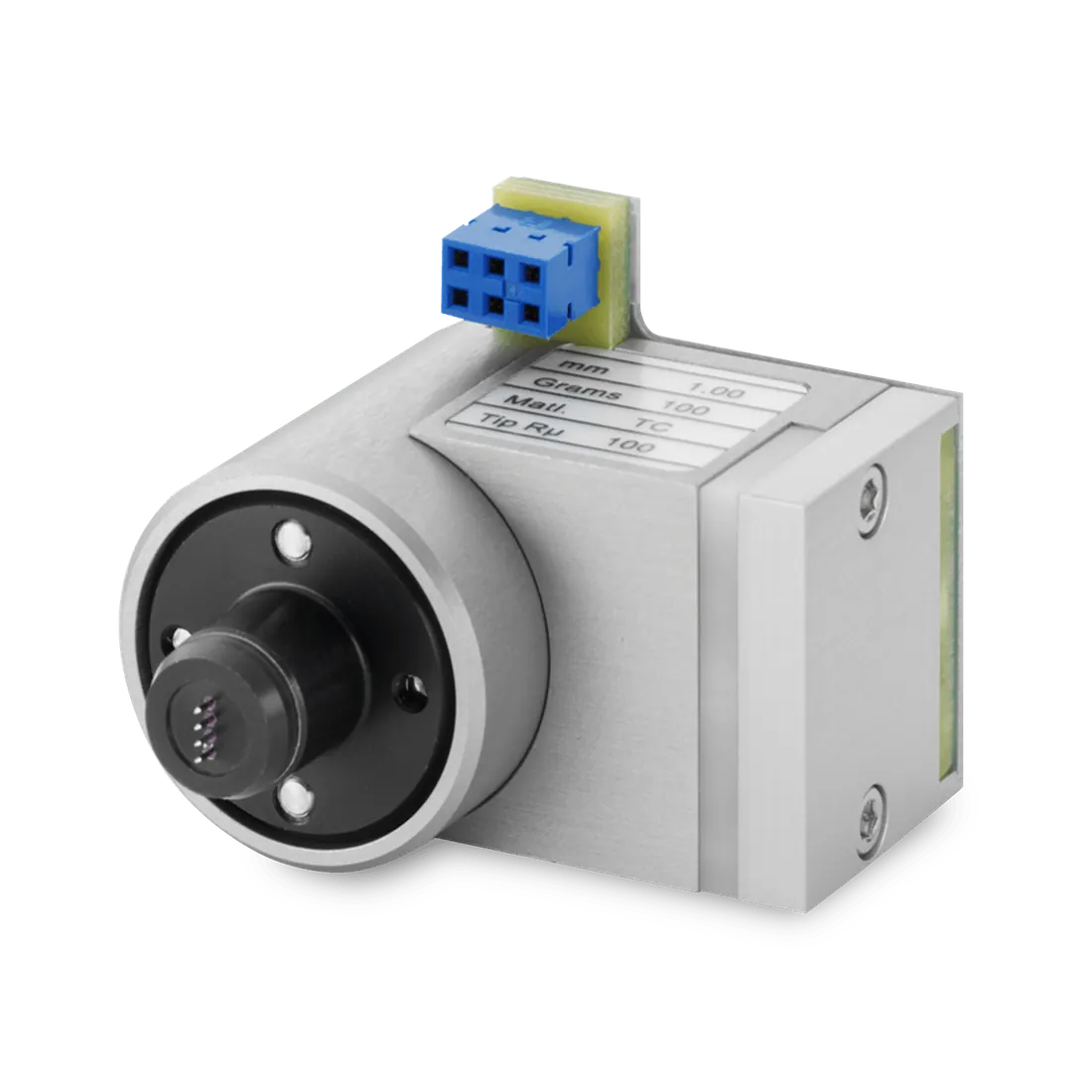

This cartridge with a 6 way connector is made to suit Creative Design Engineering systems such as the ResMap 168 and ResMap 178. It carries a distinctive black nosepiece because the similar KLA Tencor Prometrix head is not interchangeable with it.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Cartridge with 6 way connector |
| Specification | Compatible with CDE systems such as ResMap 168 and ResMap 178 |
| Specification | Distinctive black nosepiece to distinguish it from the KLA Tencor Prometrix head |
| Specification | Not interchangeable with the KLA Tencor Prometrix probe |
| Specification | Upper and lower jewelled needle guides |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
