AIT
Brand: Jandel Engineering | Category: Nanotechnology

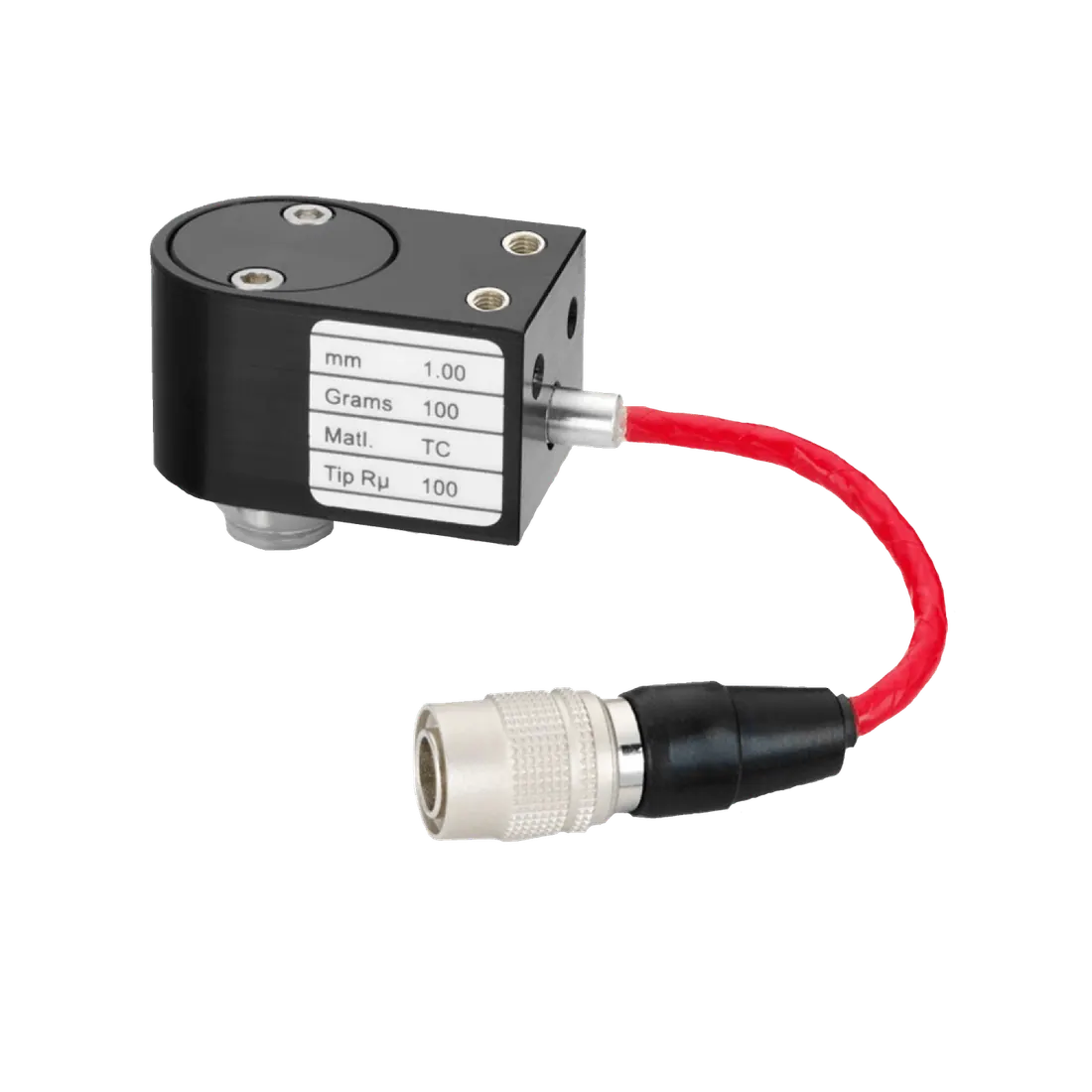

The miniature cartridge probe for AIT equipment fits tools named SR1000N, SR2000N and similar. Its tapped mounting holes also make it a practical choice for customers building their own probe holder. It resembles the Napson miniature cartridge closely, so the two should not be confused.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | For AIT equipment such as SR1000N and SR2000N |
| Specification | Holes on the top tapped M3, holes at the back tapped 6-32 |
| Specification | All holes can be made 6-32 or M3 on request |
| Specification | Upper and lower jewelled needle guides |
| Specification | Radii, spacing and planarity verified by video inspection system and optical interferometer |
