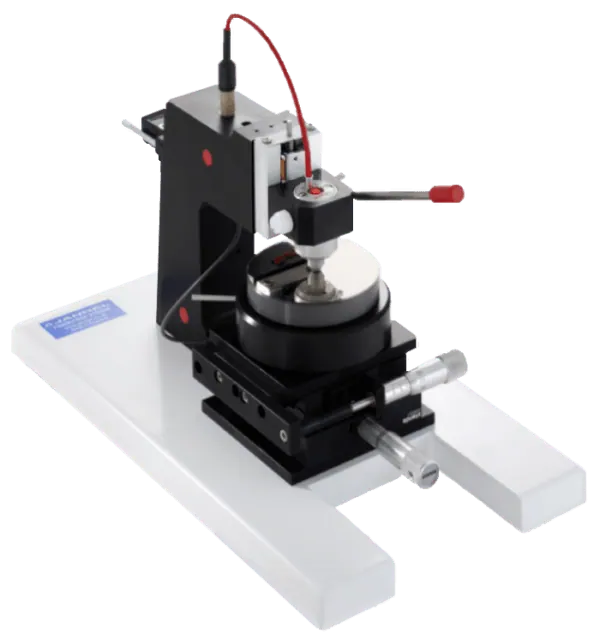

Jandel Microposition Probe Stand
Brand: Jandel Engineering | Category: Nanotechnology
The Microposition Probe Stand is for small samples and printed lines where the probe has to be placed accurately. Micrometer slides move the sample under the probe and the sample can also be rotated through a full turn.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum sample size | 76 mm |
| Micrometer movement | maximum 25 mm x 25 mm in 0.01 increments |
| Specification | 360 degree rotation of the sample |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
