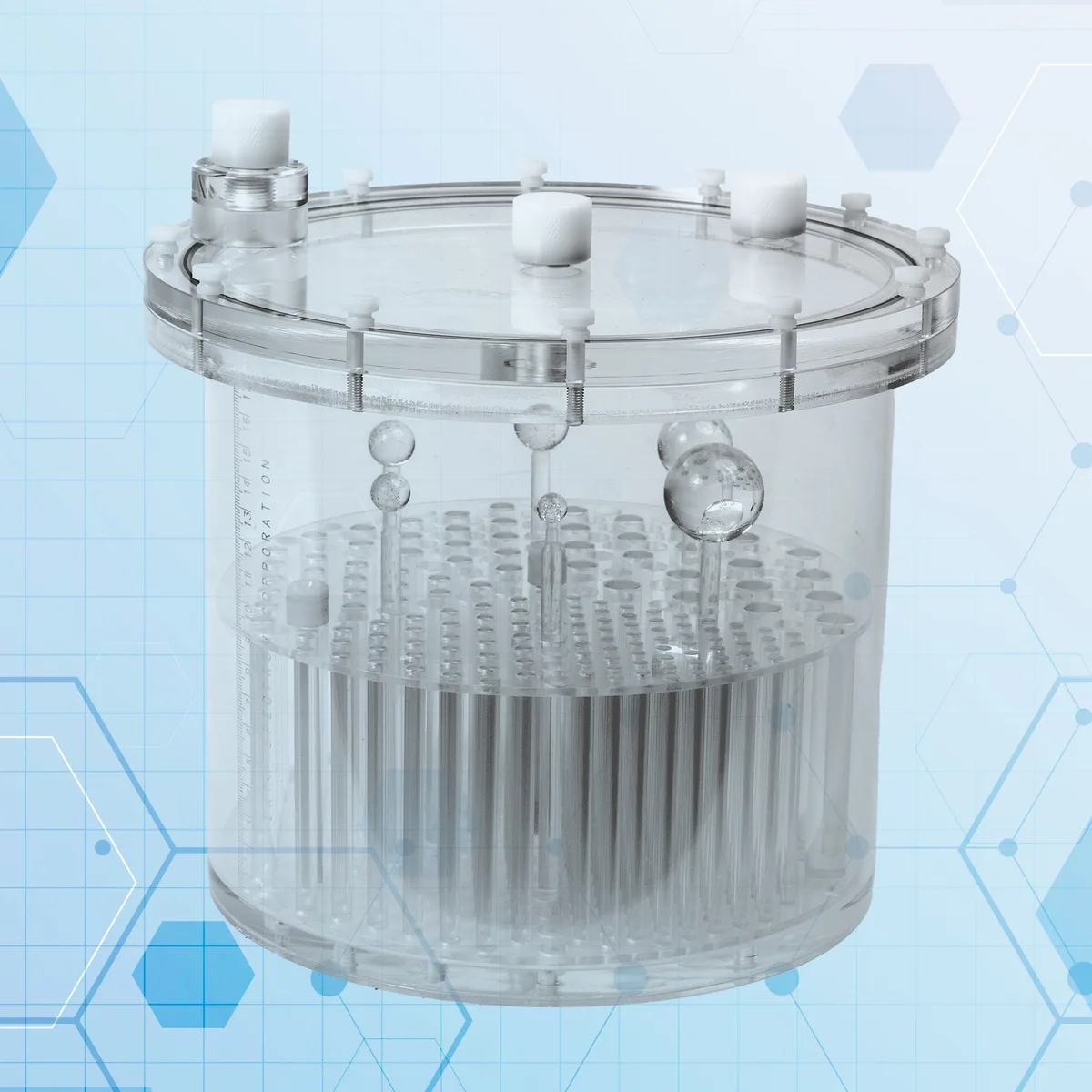

Jaszczak Phantom (Deluxe)
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A Jaszczak phantom for quality control, used to carry out system evaluation on all types of SPECT and PET systems covering uniformity, linearity and resolution, as well as acceptance testing and routine quality assurance and control. The Deluxe version has a cylinder wall thickness of 3.2 mm, a cylinder inside diameter of 21.6 cm and a cylinder inside height of 18.6 cm. Rods are supplied in six diameters at a height of 8.8 cm, and six solid spheres are set with their centres 12.7 cm above the base plate.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Cylinder wall thickness | 3.2 mm |
| Cylinder internal diameter | 21.6 cm |
| Cylinder internal height | 18.6 cm |
| Rod diameters | 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm |
| Rod height | 8.8 cm |
Selected configuration details published by MiE. Confirm the current supplied model, accessories and application-specific acceptance criteria. Shielding and source-related items require a design suitable for the proposed radionuclide and workload. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Imaging modality or beam, energy range and intended QA test
- Phantom/dosimeter geometry, detector/readout compatibility and calibration needs
- Required test inserts, analysis software, certificates and acceptance criteria
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
